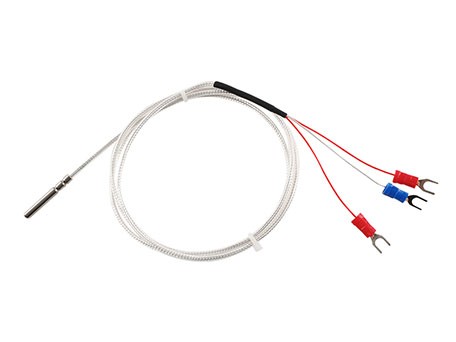

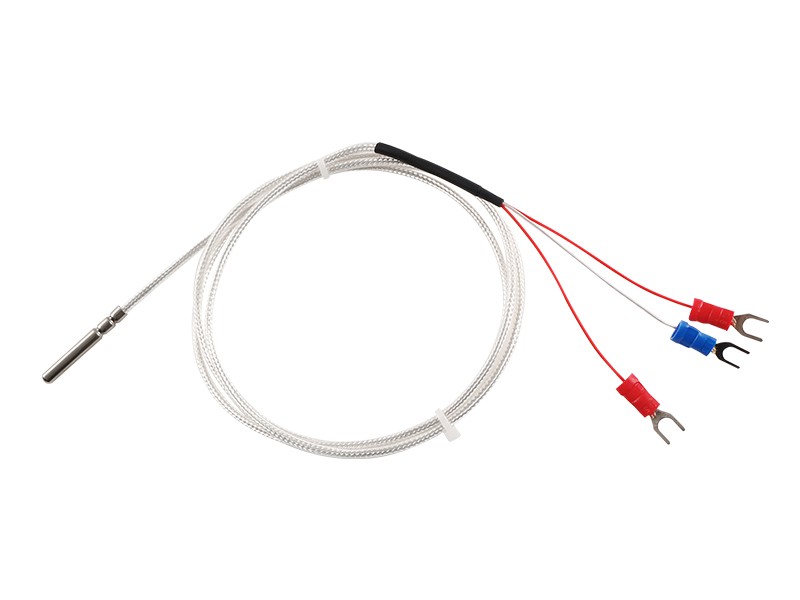

Resistance Temperature Detector

Resistance temperature detector is one of the most commonly used temperature detectors in low and medium temperature ranges. Based on the contact temperature measurement method, it can meet most of the industrial temperature measurement requirements.

Application :

●Platinum thermal resistance sensor

●Used for bolier/pipeline/electric heating plant etc...

●Object surface temperature detection

●Main steam temperature detection/Medical

Advantages
01Platinum thermal resistance sensor with the highest accuracy.
02Lower thermal resistance used in thermal management solutions.
03High quality teflon shielded wire is not afraid of any pull.
04Silicone cable with high corrosion resistance.
05Stronger waterproof with rolling process.
05PVC cable with low cost.
Resources

thermal resistance datasheet

Technical Data

Product

HTS300 Series

Temp Range

-200~600℃(thermal resistor)/-40-1200℃(K type) 0-1800℃,(B type)

Accuracy

0.1%, 0.3%, 0.5% or optional

Index Number

PT100, PT1000, Cu50, Cu100(thermal resistor)

Probe Length

30mm(default)100mm, 150mm, 200mm or by customized

Diameter

Φ4mm, φ2mm, φ3mm, φ5mm, φ6mm or customized

Cable Length

1m(standard)or customized

Installation

Plug-in installation

Cable Material

PVC, Silicone, Teflon, PTFE

Connection

2-wire, 3-wire, 4-wire

Terminals

U type, Pin type, Aviation Type

Process

Groove Rolling, SMD, etc.
