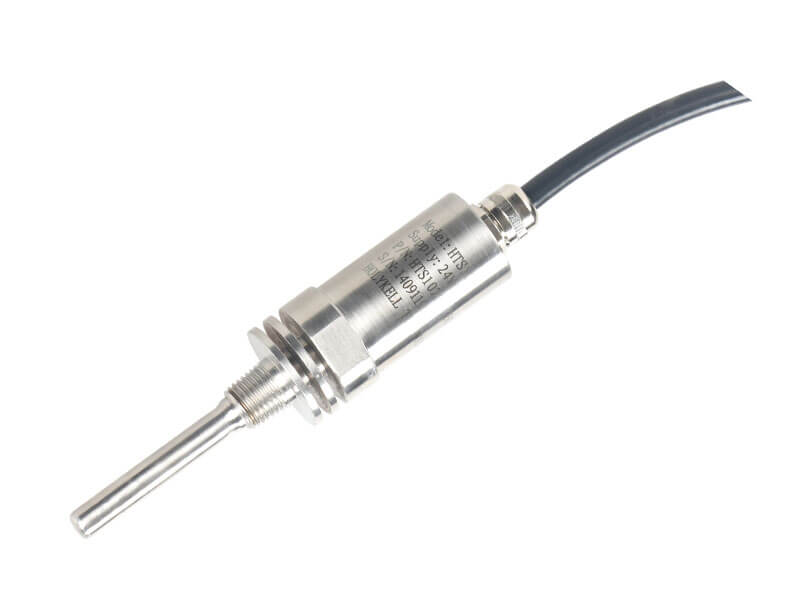

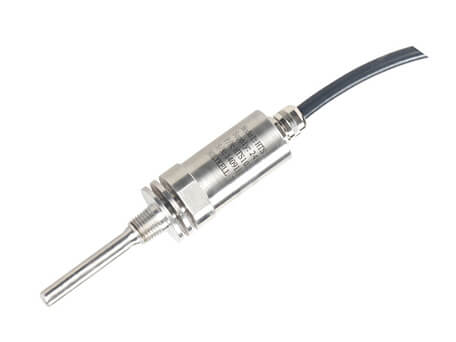

HTS102 Integrated Type Temperature Sensor

Explosion-Proof Temperature Transmitter hermetically sealed housing make it suitable the given measuring ranges are also available in mbar, kPA and MPa.for immersion in most industrial liquids and oils.

Application :

● Pipeline and ventilation system

● Hydraulic and pneumatic system

● Petrochemical industry

● Hydraulic and pneumatic systems

● Cooling system

● Heating system

● Air conditioning system(HAVC)

Advantages
01Simple installation and multifarious-temp scope
02Gas and liquid medium available
03Medium compatible 316L stainless steel
04Excellent long time stability and lower consumption
05Smaller diemension and compact structure
06Response fast and high accuracy
Resources

Technical Data

Parameter:

HTS101

HTS102

HTS103

HTS104

Measurement Range (Degree C/ ℃):

-50~0; -50~50; 0~80; 0~100; 0~120;0~150

0~200 optional

0~250; 0~300;

0~400 optional

-50 to 400 optional

Installation Type:

Insert type

Insert type

Insert type

Insert type

Probe length:

50 mm or customized

50 mm or customized

50 mm or customized

50 mm or customized

Probe Dimension:

Φ6; Φ8 optional

Φ6; Φ8 optional

Φ6; Φ8 optional

Φ6; Φ8 optional

Sensor Type:

PT100; Pt1000

PT100; Pt1000

PT100; Pt1000

PT100; Pt1000

Signal Output:

resistive signal

4-20 mA                       0-5V                  0-10V

Signal wires type:

2 wires or 3 wires

2 wires

3 wires

Power supply:

NA

9~30Vdc

18~30Vdc

Linear:

±0.1%F.S.; ±0.25%F.S.; ±0.5%F.S. Optional

Working pressure:

40Bar (standard); 300 Bar (customized)

Long time stability:

0.1%F.S.

Response time:

T=50 2.3S; T=90 5.4S

Electronic proof:

NA

Reverse polarity protection; Overload voltage protection (standard);

surge protection (customized)

Environment temp:

-40~85 Degree C

Storage temp:

-40~125 Degree C

Materials of housing:

316L Stainless Steel

Materials of process:

316L Stainless Steel

Water proof grade:

IP65
