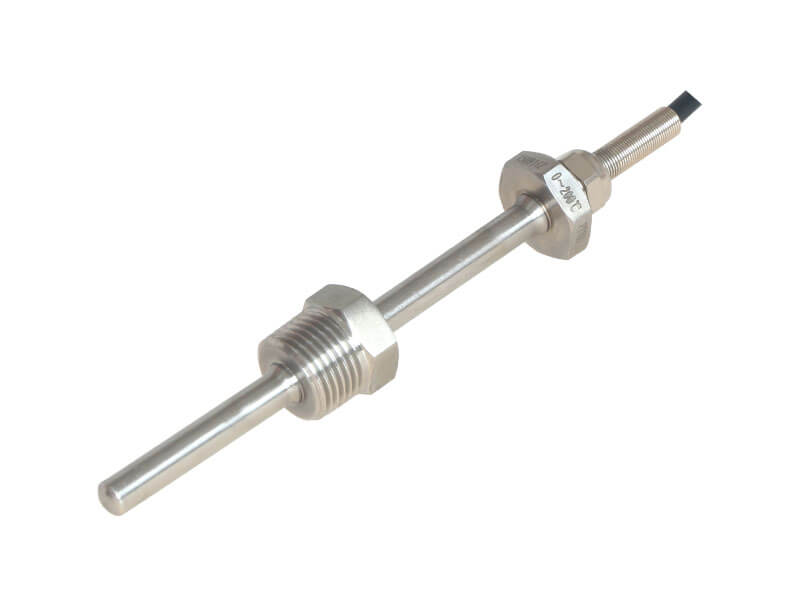

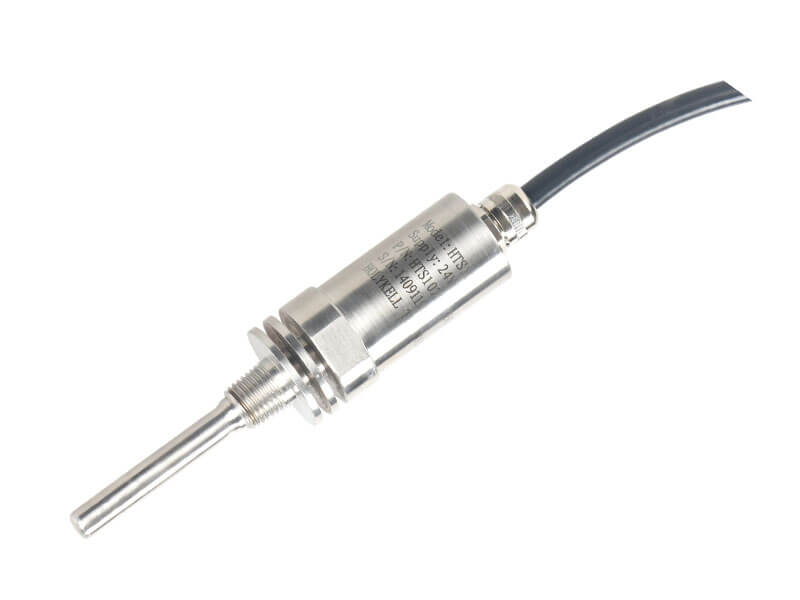

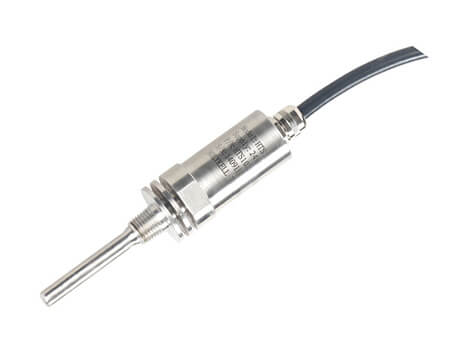

HTS101 Integrated Type Temperature Transducers

High Temperature Transmitter mainly used in hydraulic and pneumatic system. It consists of an MEAS TE piezoresistive sensing element encased in 316 SS housing.

Application :

● Pipeline and ventilation system

● Hydraulic and pneumatic system

● Petrochemical industry

● Hydraulic and pneumatic systems

● Cooling system

● Heating system

● Air conditioning system(HAVC)

Advantages
01Simple installation and multifarious-temp scope
02Gas and liquid medium available
03Medium compatible 316L stainless steel
04Excellent long time stability and lower consumption
05Smaller diemension and compact structure
03Response fast and high accuracy
Resources

Technical Data

Parameter:

HTS101

HTS102

HTS103

HTS104

Measurement Range (Degree C/ ℃):

-50~0; -50~50; 0~80; 0~100; 0~120;0~150

0~200 optional

0~250; 0~300;

0~400 optional

-50 to 400 optional

Installation Type:

Insert type

Insert type

Insert type

Insert type

Probe length:

50 mm or customized

50 mm or customized

50 mm or customized

50 mm or customized

Probe Dimension:

Φ6; Φ8 optional

Φ6; Φ8 optional

Φ6; Φ8 optional

Φ6; Φ8 optional

Sensor Type:

PT100; Pt1000

PT100; Pt1000

PT100; Pt1000

PT100; Pt1000

Signal Output:

resistive signal

4-20 mA                       0-5V                  0-10V

Signal wires type:

2 wires or 3 wires

2 wires

3 wires

Power supply:

NA

9~30Vdc

18~30Vdc

Linear:

±0.1%F.S.; ±0.25%F.S.; ±0.5%F.S. Optional

Working pressure:

40Bar (standard); 300 Bar (customized)

Long time stability:

0.1%F.S.

Response time:

T=50 2.3S; T=90 5.4S

Electronic proof:

NA

Reverse polarity protection; Overload voltage protection (standard);

surge protection (customized)

Environment temp:

-40~85 Degree C

Storage temp:

-40~125 Degree C

Materials of housing:

316L Stainless Steel

Materials of process:

316L Stainless Steel

Water proof grade:

IP65
