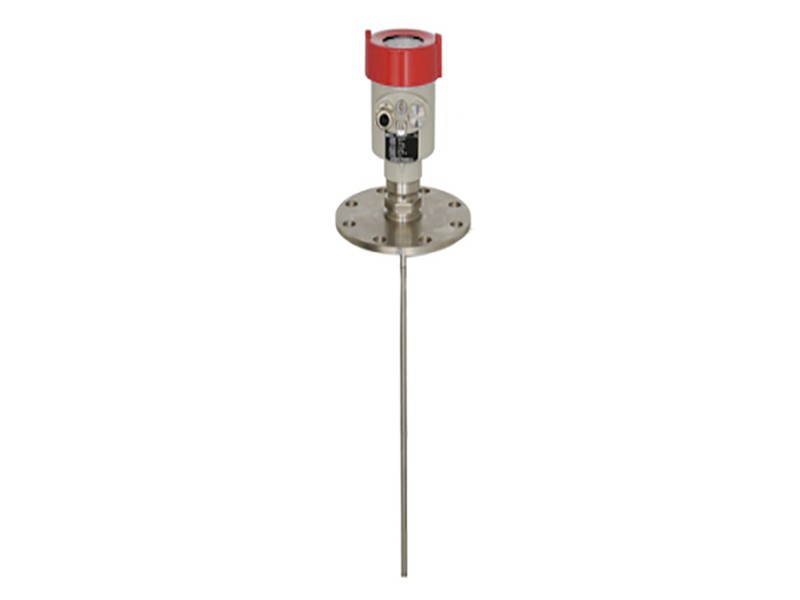

HR685 Complicated Conditions Guide Wave Radar Level Sensor

Guided Wave Radar Level Sensor is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.

Application :

●Complicated conditions

●Sealed cans

●Greater pressure liquid measurement

●High temperature level Using

●Chemical Liquid

Advantages
01Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere
02Severe dust environment is not likely to affect the work of the high-frequency level meter
03Shorter wavelength can achieve better reflection for the inclined solid surface
Resources

Holykell-Measuring Instrument

Technical Data

Suitable for Medium

Liquids

Explosion-proof Grade

Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range

15m

Frequency

500MHz-1.8GHz

Antenna

Single cable or single rod antenna

Accuracy

±10mm

Process Temperature

(-200~400)℃

Process pressure

(-0.1~40)MPa

Signal output:

(4~20)mA/HART

The Scene Display

Four LCD/Can be programmed

Power Source

Two-wire (DC24V) ;Four-wire(DC24V/AC220V)

Shell

Aluminum /Plastic

Connection

Thread / Flange (optional)
