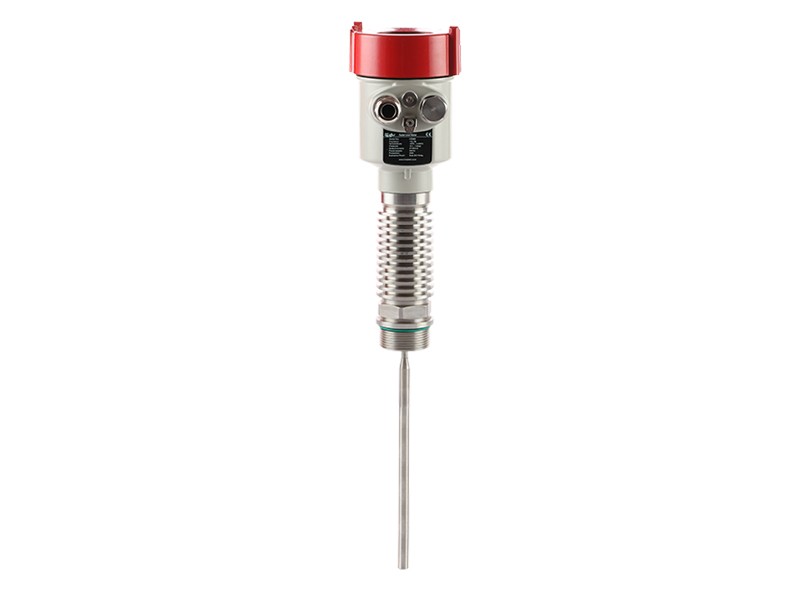

HR682 Guided Wave Radar

Guided Wave Radar for corrosion medium ,that is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.

Application :

●Liquid Level

●Corrosive Liquids Level

●Wine

●Seawater

●Chemical Liquid

Advantages
01Guided wave radar level meter can be used in a variety of complex conditions
02Suitable for a variety of complex conditions and applications
03High temperature, high pressure and low dielectric constant media. Pulsed work
04Transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment
Resources

Technical Data

Suitable for Medium

Liquid,especially corrosive liquids

Explosion-proof Grade

Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range

20m

Frequency

500MHz-1.8GHz

Antenna

Full PTFE sealing cable type or rod antenna

Accuracy

±10mm

Process Temperature

(-40~200)℃

Process pressure

(-0.1~2)MPa

Signal output:

(4~20)mA/HART

The Scene Display

Four LCD/Can be programmed

Power Source

Two-wire (DC24V) ;Four-wire(DC24V/AC220V)

Shell

Aluminum /Plastic

Connection

Flange (optional) / Thread
