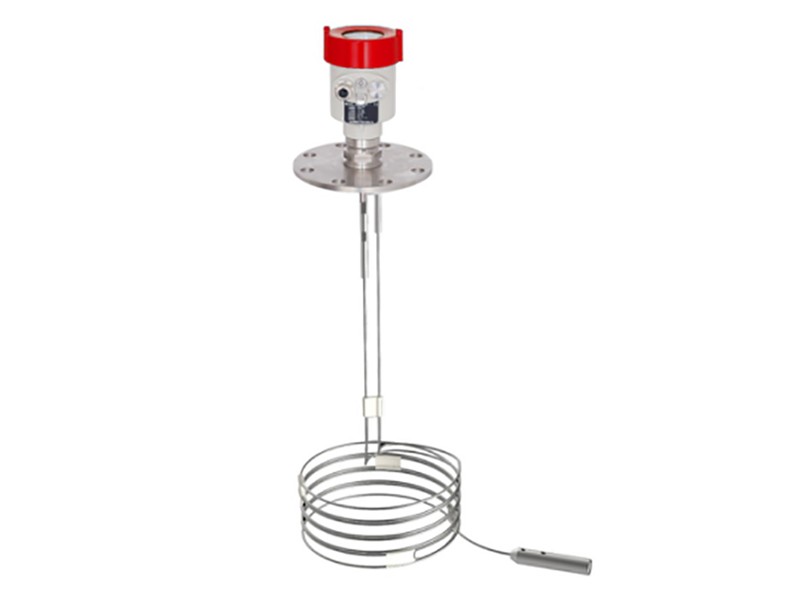

HR683 Guided Wave Radar Level Sensor
Guide wave radar level sensor is a non-contact, microprocessor controlled, easy to install and maintain digital level instrument,to realize the antenna to the surface of medium distance measurement.
Application :
●Solid Powder
●Cement silo Powder
●Ash power measure
●Solid oil
Advantages
01Guided Wave Radar Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media. Pulsed work
02Guided wave radar level instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.
Resources
Technical Data
|
Suitable for Medium |
Solid powder |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd ia IIC T6 Gb |
|
Measuring Range |
20m |
|
Frequency |
500MHz-1.8GHz |
|
Antenna |
Double cable type antenna |
|
Accuracy |
±10mm |
|
Process Temperature |
（-40～150）℃ |
|
Process pressure |
（-0.1～2）MPa |
|
Signal output: |
（4～20）mA/HART |
|
The Scene Display |
Four LCD/Can be programmed |
|
Power Source |
Two-wire (DC24V) ;Four-wire（DC24V/AC220V） |
|
Shell |
Aluminum /Plastic |
|
Connection |
Flange (optional) / Thread |
