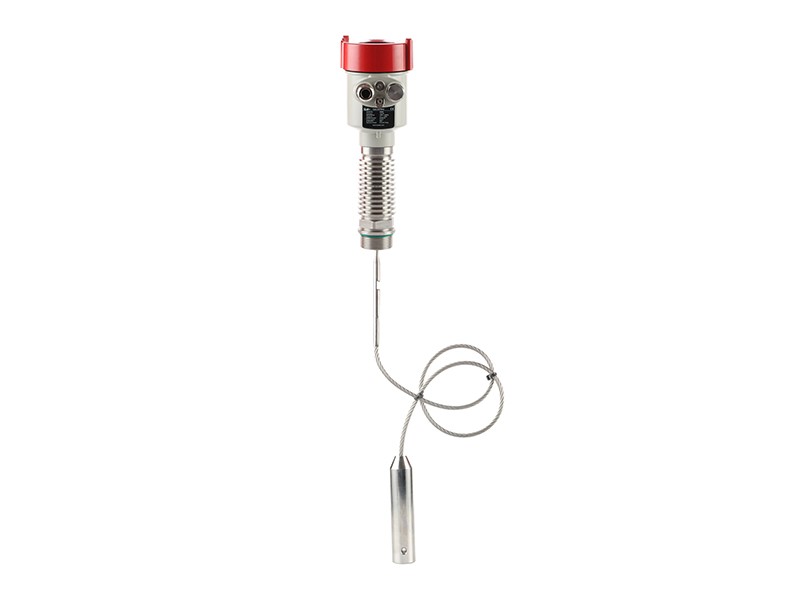

HR681 Radar Level Probe
Radar level probe is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.
Application :
●Solid
●Powder
●Wine
●Complicated process conditions
●Liquid Level
Advantages
01As a result of advanced microprocessor and unique Discovery echo processing technology
02Guided wave radar level meter can be used in a variety of complex conditions
03Suitable for a variety of complex conditions and applications
04High temperature, high pressure and low dielectric constant media. Pulsed work
Resources
Technical Data
|
Measuring Range |
20m |
|
Frequency |
500MHz-1.8GHz |
|
Antenna |
Single cable or single rod antenna |
|
Accuracy |
±10mm |
|
Process Temperature |
（-40～250）℃ |
|
Process pressure |
（-0.1～2）MPa |
|
Signal output: |
（4～20）mA/HART |
|
The Scene Display |
Four LCD/Can be programmed |
|
Power Source |
Two-wire (DC24V)；Four-wire（DC24V/AC220V） |
|
Shell |
Aluminum /Plastic |
|
Connection |
Flange (optional) / Thread |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd ia IIC T6 Gb |
