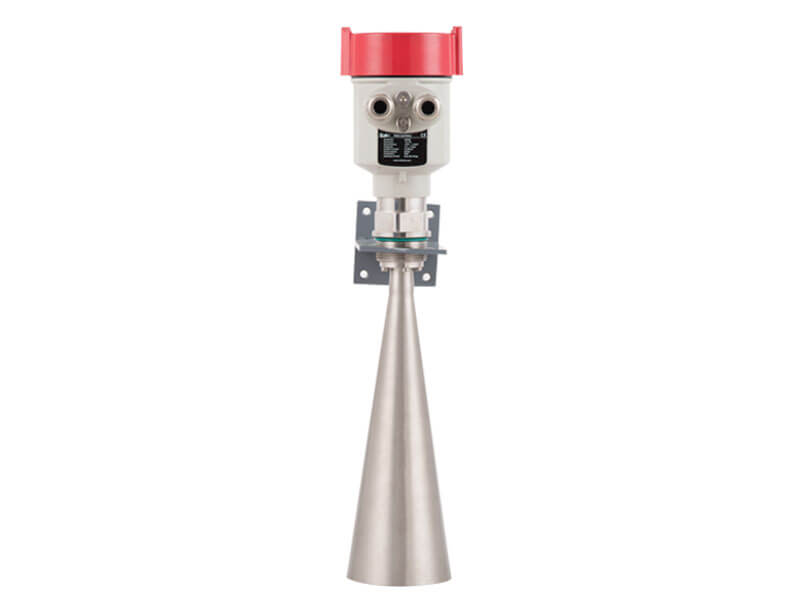

HR262 High Frequency Radar Level Transmitter
High frequency radar level transmitter is 26G High Frequency radar level measurement instrument, Antenna being further optimized, fast new microprocessor could be higher-speed signals processing.
Application :
● Temperature resistance
● Pressure resistance
● Slightly corrosive liquids
● Heap material field
● Granaries
● Diesel fuel level
Advantages
01The low noise ratio, even in case of fluctuations can get better performance
02Self-contained power supply
03Fast response, suitable for noisy or adverse conditions
04An ultra-wide user defined conductivity range allows for use in different
05Audible and visible alarms activated when the probe makes
Resources
Technical Data
|
Measurement Span |
0 to 30 meters 12m/15meters (powder);18m/20m(particle) |
|
Signal Output |
4...20mA/HART (2 wires/4 wires) RS485/Modbus |
|
Process Connection |
G1-1/2'' Thread or Flanges |
|
Medium Temperature |
-40~150℃ |
|
Process Pressure |
-1Bar~40 Bar |
|
Accuracy |
±3mm |
|
Proof Grade |
IP67 |
|
Supply |
DC24V or 85-265VAC |
|
The Frequency Span |
up to 26G Hz |
|
Explosion proof grade |
Exib ⅡCT6 Gb |
