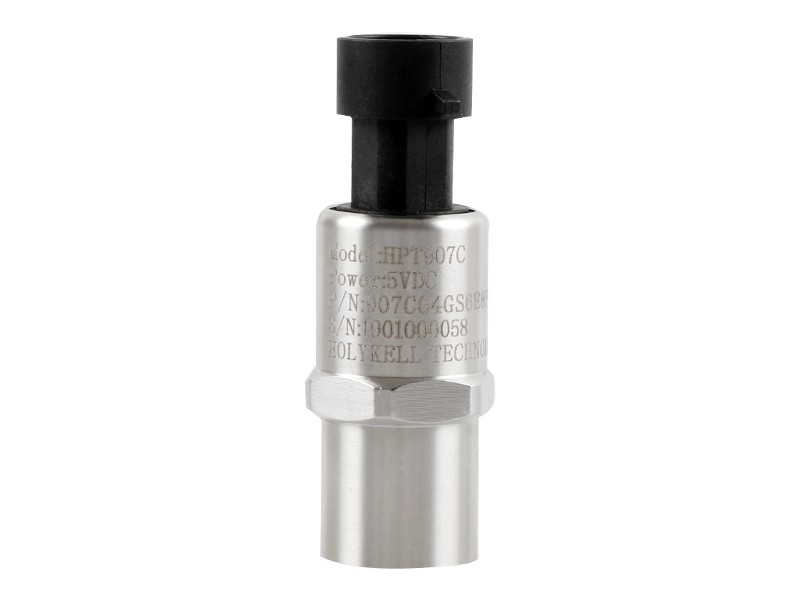

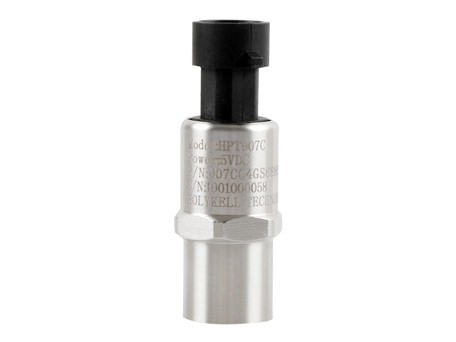

HPT907C Economic Air Pressure Sensors

Economic air pressure sensors is especially designed for Racing Car and Track gas brake systems, it sets a new performance standard for low cost, high volume, commercial and industrial applications.

Application :

● Hydraulic Pressure Monitoring

● Vehicle Brake System Monitoring

● Breathing machine pressure sensor

● Hydraulic Control Monitoring

● Off Highway Vehicles

●Air pressure sensor

Advantages
01Error: ±2%F.S. (including 0 ~ 90℃ temperature error)
02MEMS technology
03Temperature compensation, signal amplification
04EMI protection; CE Approved
05Wide voltage power supply (5~24VDC)
06Reverse polarity protection and short circuit protection
Resources

Holykell-Measuring Instrument

Technical Data

Parameter

HPT907C

Body materials

SUS304 stainless steel

Overload

150% F.S

Max Error:

±2%F.S. (including -20 ~ 80 ℃ temperature)

Working Temp

-35℃~100℃

Storage Temp

-40℃~85℃

Temperature Compensation

0℃~50℃

Medium

Air, water, oil and other non-corrosive, non-solvent medium

Signal Output

 0.5-4.5V ratio-metric

Power Supply

 5Vdc±5%

Supply current

<10mA

Output impedance

≥2.5kΩ

Pressure cycle life

≥50,000,000 (10%-90% span)

Connector

3 Pins Packard Connector

Pressure connect port

G1/4'' male, 1/4''NPT female or by customized

Vibration

10Hz, 3mm/hour

IP Rating

IP65
