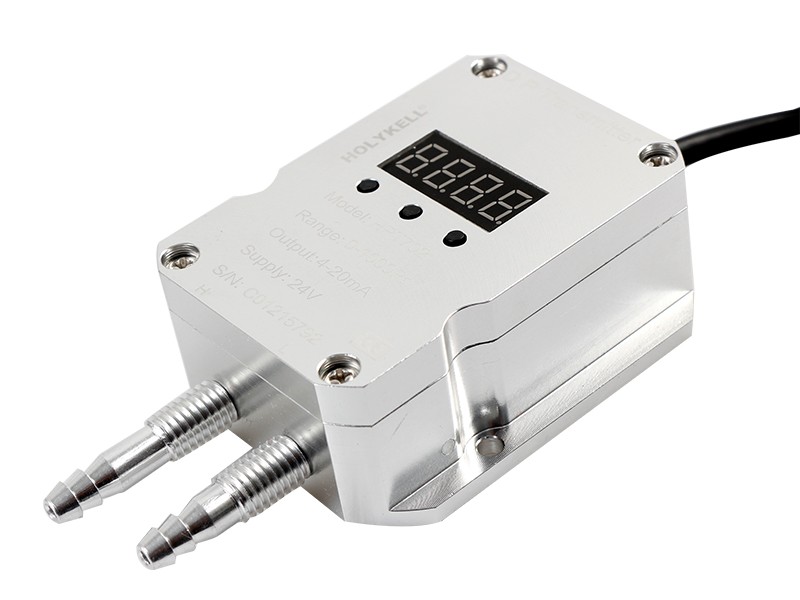

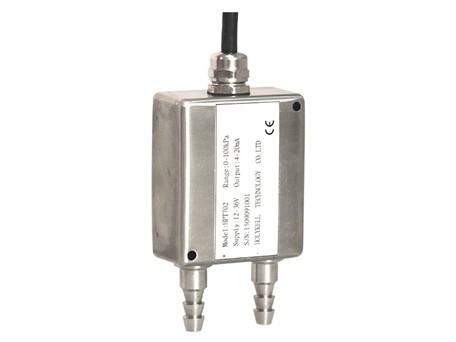

HPT702 Air Differential Pressure Transmitter

Low range air differential pressure transmitter provides an accurate solution available from 0-50pa to 0-500Kpa DP. Incorporating the latest silicon sensor and electronics technologies, 4-20mA transmitters are fully temperature compensated for unrivalled stability at very low pressure.

Application :

● Leak detection device

● Boiler

● Brewing

● locomotives

● non-conductive non-corrosive gas

● HAVC Air differential pressure

Advantages
01The best solution for differential pressure measurement of air, flammable and explosive gas or HAVC system.
02The automatic temperature compensation function is suitable for more severe working conditions.
03The explosion-proof aluminum alloy shell is more suitable for measuring the differential pressure of flammable and explosive gases.
04Differential pressure manufacturer.
Resources

Air Differential Pressure Sensor

Technical Data

Parameter

HPT702



Pressure Range

±100Pa~100KPa optional

Safe overload

200% F.S.



Burst Pressure

500% F.S.



Accuracy

1.0%F.S; 0.5%F.S; 0.25%F.S optional

Long Time Stability

≤0.2%F.S/Year

Working Temp

-40℃~85℃

Storage Temp

-40℃~105℃



Temperature compensation

0℃~50℃

Zero Point Temp Drift

≤±0.03%F.S/℃

Full Scale Temp Drift

≤±0.03%F.S/℃

Max Static Pressure

≤200 kPa



Medium compatible

<5 kPa,  non-corrosive gas.    ≥5 kPa, compatible with 316L liquids

Electronic Wire

2 Wires                                                             3 Wires                                    4 Wires

Output

4~20mA

0~5V / 0~10 V             RS485 Modbus RTU

Power Supply

12~ 30 V DC

12~30 V / 15~30 V     12~30 V

Load resistance

R=(U-12.5) / 0.02-RD (RD is cable inner resistance)

Electronic connection

Fixed cable outlet

Materials of diaphragm

Silica gel / 316L

Proof grade

IP66

Pressure connect port& Materials

Φ8 gas port, M10 SUS304 Stainless steel and LY12

Response time

≤1ms



Adjustment

Support adjustable zero and span.

Pressure Type

Differential pressure (Gauge pressure)

EMC Standard

Approving

Weight

Around 0.2KG (excluding package)
