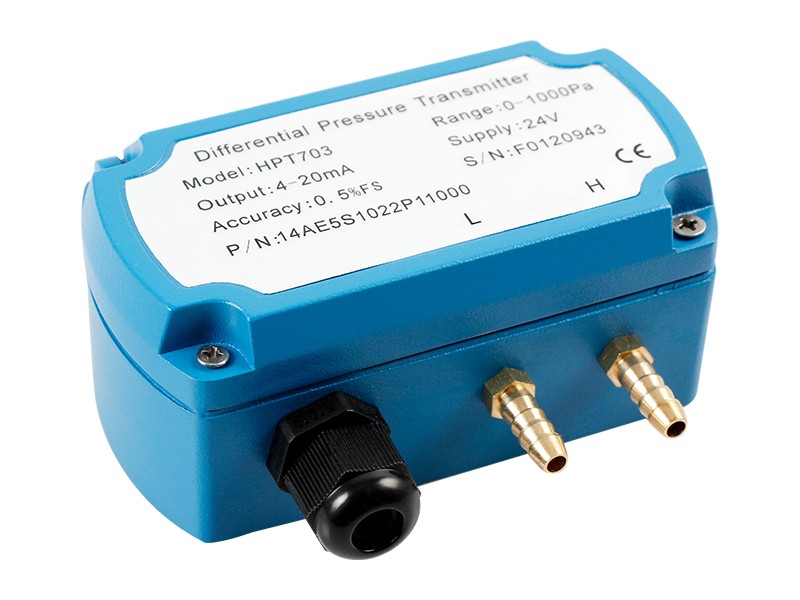

HPT703 Micro Differential Pressure Transmitter

HPT703 Micro Differential Pressure Transmitter provides an accurate solution for low pressure sensing with ranges available from 0-250pa to 0-25Kpa. With variable capacitance sensing technology and argon arc welded sensitive components,it's advanced circuit linearity and temperature compensation technology makes better transmitter performance.

Application :

● Environmental contamination control

● Pipe pressure monitoring

● Medical equipment and devices

● Oven pressure boost and ventilation control

● Purification project

● Underground ventilation

Advantages
01Using ultra-sensitive air pressure sensor, it can be used for 0-25 Pascal air pressure.
02Built-in digital temperature compensation function that can withstand high and low temperatures, and can withstand extreme differential pressure environments.
03IP68 waterproof can be used in rain and snow weather.
04UL94V-0 flame retardant function can be used for flammable and explosive gases.
Resources

Micro Differential Pressure Transmitter

Technical Data

Parameter

HPT703

Pressure Range

0-250Pa-25kPa

Safe overload

200% F.S.

Burst Pressure

400% F.S.

Accuracy(Linearity hysteresis repeatability)

1.0%F.S; 0.5%F.S; 0.25%F.S optional

Long Time Stability

≤0.2%F.S/Year

Working Temp

18℃~+65℃

Storage Temp

-54℃~+82℃

Temperature compensation

5℃~65℃

Zero Point Temp Drift

<0.06%F.S/℃

Full Scale Temp Drift

<0.06%F.S/℃

Zero Error

≤±0.5%F.S

Total Error

≤±0.75%F.S

Medium compatible

Air or non-corrosive gas

Output

2 Wires(RS485)  3 Wires(0-5,0-10,0.5-4.5V)

Power Supply

12-30 VDC

Electronic connection

PG-9 or PG-13.5 cable locking device or 1/2" wire opening

Pressure connect port

3/16" gas mouth  with 1/4" hose

Response time

<1ms

Adjustment

Support local zero and span calibration.

Pressure Type

Differential pressure (Gage pressure)

Standard

Approving

Weight

347.5g
