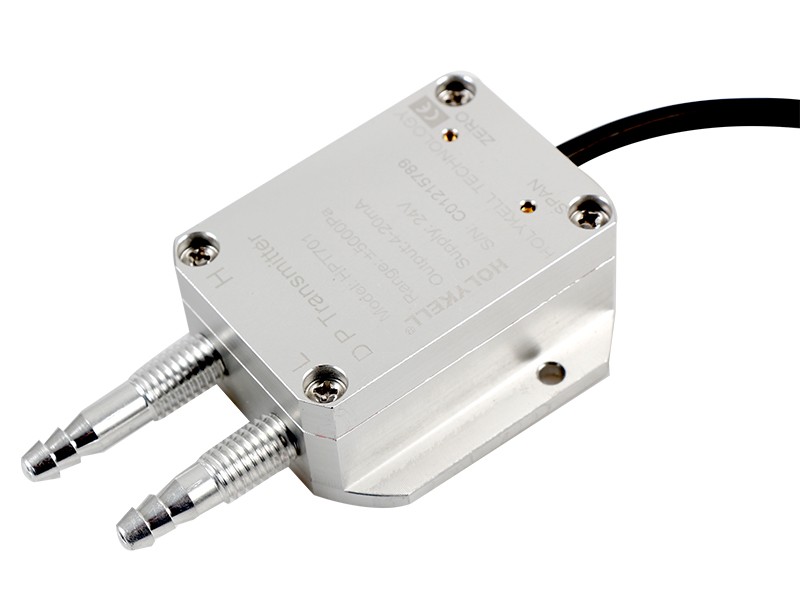

HPT701 Air Differential Pressure Sensor

Air Differential Pressure Sensor is precision engineered for monitoring differential pressure of air and compatible gases in commercial and OEM applications and liquids with 0.25% accuracy.

Application :

● HAVC Air differential pressure

● Wind pipe pressure measurement

● Industrial dust removal equipment

● Purification plant

● Blow down expander

● Leak detection device

Advantages
01It has a built-in high-sensitivity air pressure sensing element independently developed by HOLYKELL, which can measure air pressure of 1 pa.
02The sensor comes with digital temperature compensation, which can be used in environments with high and low temperature differential pressure.
03It adopts moisture-proof, waterproof, dust-proof and other technologies, and can be used in bad weather or complex working conditions.
04CE certification.
Resources

air differential pressure sensor

Technical Data

Parameter

HPT701

Pressure Range

±100Pa~100KPa optional

Safe overload

200% F.S.

Burst Pressure

500% F.S.

Accuracy

1.0%F.S; 0.5%F.S; 0.25%F.S optional

Long Time Stability

≤0.2%F.S/Year

Working Temp

-40℃~85℃

Storage Temp

-40℃~105℃

Temperature compensation

0℃~50℃

Zero Point Temp Drift

≤±0.03%F.S/℃

Full Scale Temp Drift

≤±0.03%F.S/℃

Max Static Pressure

≤200 kPa

Medium compatible

<5 kPa,  non-corrosive gas.    ≥5 kPa, compatible with 316L liquids

Electronic Wire

2 Wires                                        3 Wires                               4 Wires

Output

4~20mA                                    0~5V / 0~10V              RS485 Modbus RTU

Power Supply

12~ 30 VDC

Load resistance

R=(U-12.5) / 0.02-RD (RD is cable inner resistance)

Electronic connection

Fixed cable outlet

Materials of diaphragm

Silica gel / 316L

Proof grade

IP66

Pressure connect port

& Materials

Φ8 gas port, M10

SUS304 Stainless steel and LY12

Response time

≤1ms

Adjustment

NA, please select another model HPT702 for adjustable zero and span.

Pressure Type

Differential pressure (Gage pressure)

EMC Standard

Approving

Weight

Around 0.2KG (excluding package)



12~30 V / 15~30V
