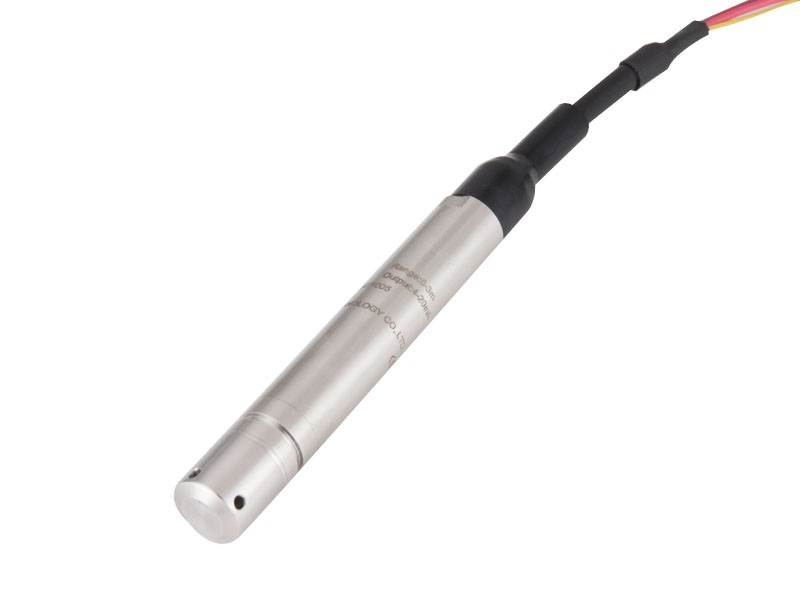

HPT607 Submersible Borehole Level Sensor
The submersible borehole level sensor is designed for ground water and drilling fluid level measurements. Based on the fluidics design, it can ensure the stability of the measurement.
Application :
●Borehole level measurement
●Deep well measure
●Level sensor in drilling platform
●Level measurement in storm water
●Sediment water level measure
Advantages
01Slender design Ø19mm Diameter Body
02All welded 316SS body and 316L stainless steel diaphragm
03Unique triple waterproof design, IP68 water proof
04Throw in sludge more than 10 years and continue to be subjected to gravity
05Fluid design is adopted to reduce the impact of medium on the probe
Resources
Technical Data
|
Range |
0~1 M……500 M H2O optional |
|
Output |
4~20mA,0~5V/0.5~4.5V/0-10V |
|
Power supply |
12VDC~30VDC |
|
Accuracy |
0.25%F.S, 0.5%F.S optional |
|
Electronic connection |
Fixed cable and water proof IP68 |
|
Pressure port |
With stainless steel filter (Standard type), nylon filter, |
|
|
G1/4’’ male thread, 1/4’’NPT male thread optinal |
|
Working temperature |
-30°C~+85°C |
|
Temp Compensation |
0℃~70℃ |
|
Life time |
≥100,000,000 pressure cycles |
|
Certificate |
CE,RoHS |
|
Application |
Depth well , Borehole etc |
Order information
Level range: 0-5m Output: 4-20mA
Power supply: 12~36VDC 5m directly cable : IP68
