HLM Tape Reel Depth Water Level Meter

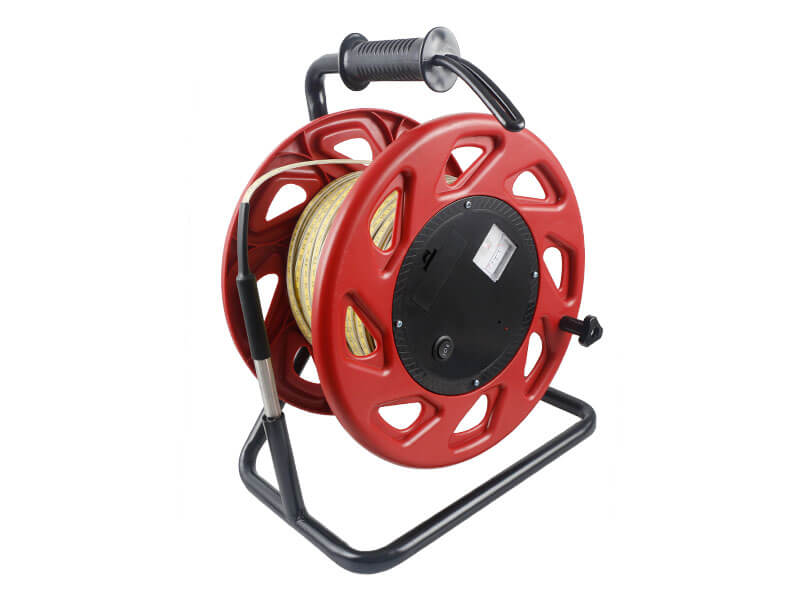

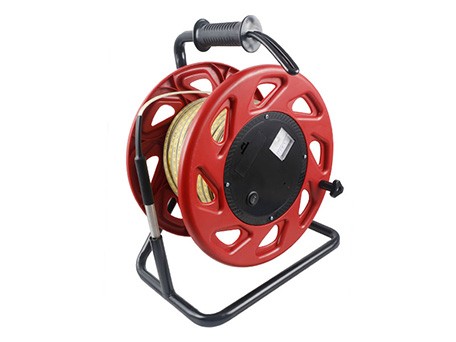

HLM Series Water Level Meter with Laser Marked Tape, easy to use and read accurately to 1/100 ft. Water Level Meter is supplied on a sturdy winding reel complete with a brake and carrying handle.

Application :

● Water conservancy

● Dam power station

● Agricultural Irrigation

● Under ground well water

● Depth in wells, boreholes, standpipes, and tanks

● Hydrological monitoring

Advantages
01Making it ideal for accurate measuring the total well depth
02Self-contained power supply
03Fast response, suitable for noisy or adverse conditions
04An ultra-wide user defined conductivity range allows for use in different applications
05Audible and visible alarms activated when the probe makes
Resources

Technical Data

Power supply

9v lithium battery

Level range

0-500m optional

Response Time

≤1ms

Working Temp

-20℃~+60℃

Minimum indication

1mm

Signal

LED, buzzer, electricity meter

Reels color

Red,blue,yellow,black

Reels material

ABS,Metallica

Probe Diameter

14mm

Standard lengths

30,50,100,150,300,400,500
