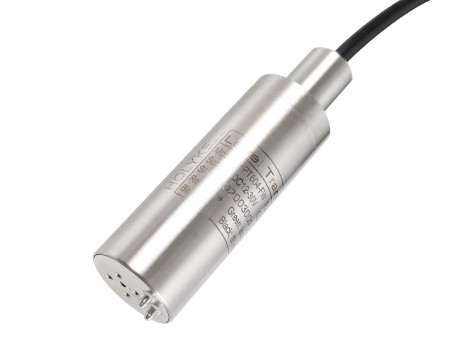

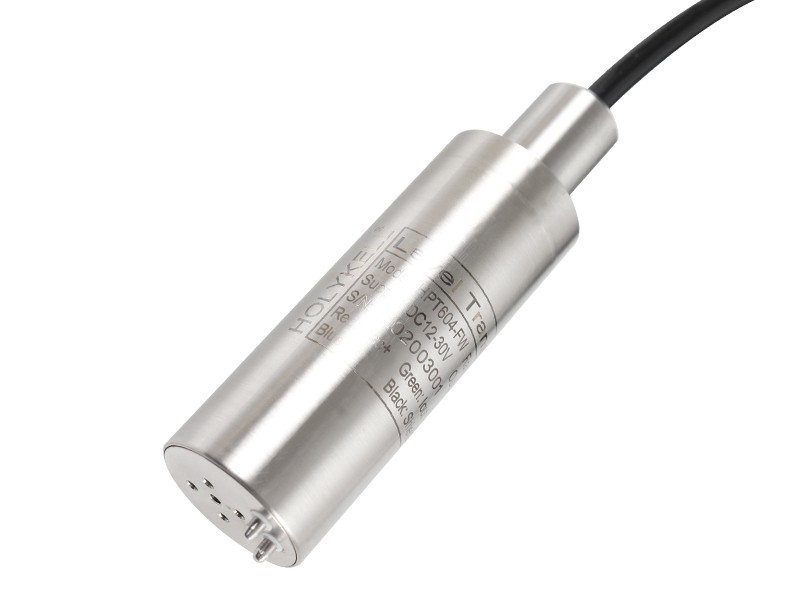

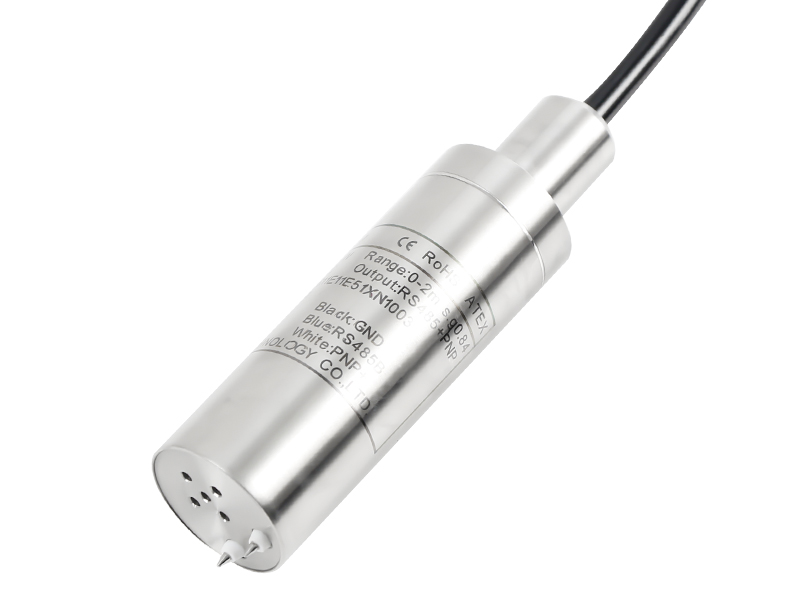

HPT604-FW Water In Fuel Sensor
The HPT604-FW Water in fuel sensor (WIF sensor) are mainly used in water detector/monitoring in fuel tanks. It is made by MEAS high stable and reliable OEM piezo-resistive pressure sensor with water detect sensors and high accurate circuit board into the stainless steel housing.
Application :
●Water Detector/Monitoring of Fuel Tanks
●Diesel Tank Level Monitor Systems
●Water Under Oil and Fuel Level Monitor
●Oil And Water Separation Location Detection
●Position Detector Of Silt Layer
●Water Level Position Detector
Advantages
01High accuracy up to 0.25%FS.
02It can make a distinction between water and oil in fuel tank.
03High sensitive performance with 316L stainless steel probe tip.
04It can calculate water level value exactly, and alarm when water level reaches its maximum.x`
05It's performance exceeds that of magnetostrictive level sensor with low cost only.
Resources
Technical Data
|
Pressure Range |
0.05~50 bar optional |
|
Level Range |
0.5, 0~50 mH2O optional |
|
Pressure Type |
Gage /Absolute pressure |
|
Overload |
1.5X Rated |
|
Brust Pressure |
3X Rated |
|
Power Supply |
12-24Vdc, 12-30Vdc |
|
Accuracy |
0.1%FS, 0.25%FS, 0.5%FS by customized/4H |
|
Zero Temp. Drift |
0.1, 0.2, 0.3F.S/℃ |
|
FS Temp. Drift |
0.01, 0.02. 0.03F.S/℃ |
|
Working Temp |
-40°C~+100°C |
|
Storage Temp |
-40°C~+125°C |
|
Response Time |
10 ms |
|
Certificate Approve |
ATEX, ExdIICT6, TUV, RoHSand, CE |
|
Waterproof |
IP68 |
|
Lighting Protection |
Air conduction more than 8000V; external sensor more than 4000 Voltage protectio |
|
Cable |
PE, PUR, PTFE optional |
|
Weight |
Net weight is about 0.35KG |
