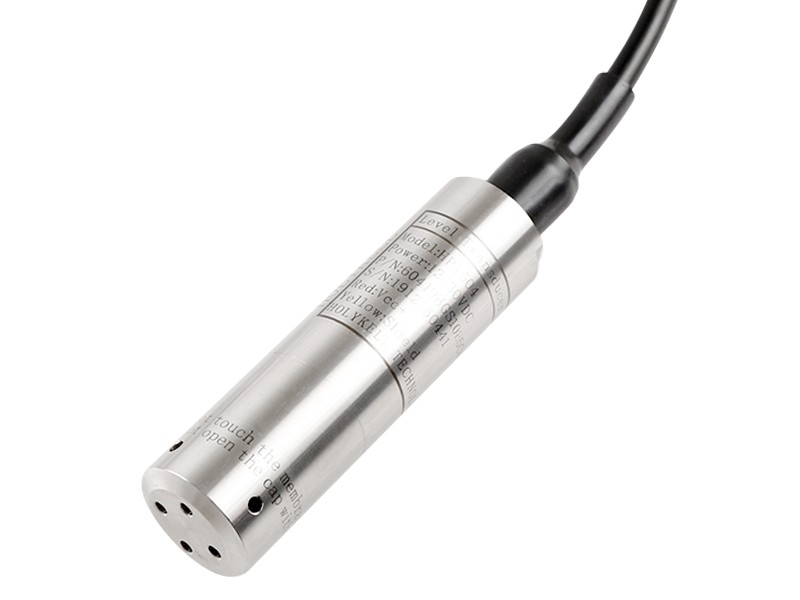

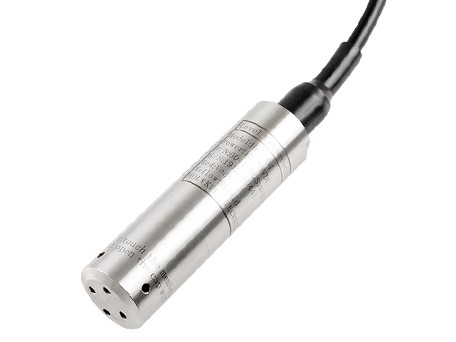

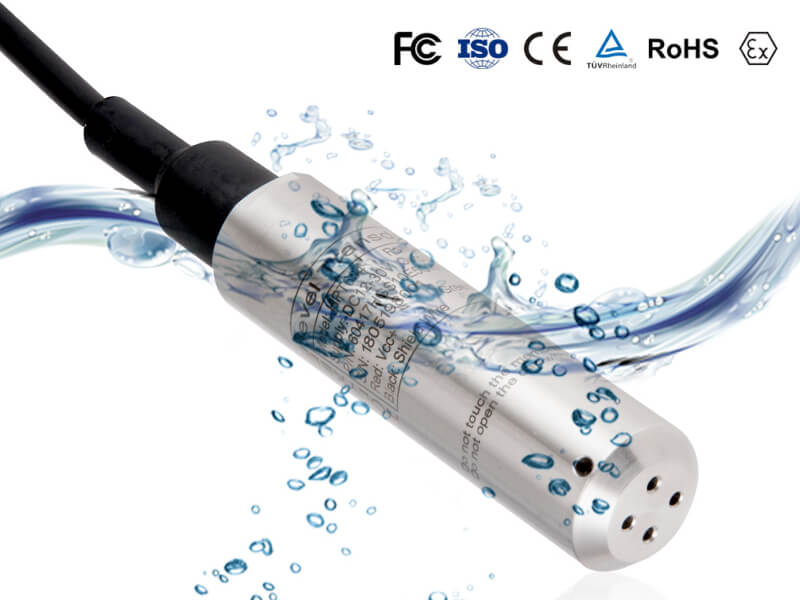

HPT604 Submersible Water Level Sensor
The Submersible Water Level Sensor is a general purpose submersible hydrostatic level transmitter. It adopts an imported high-quality piezoresistive sensor, robust 316L stainless steel housing and a hydrometric cable with a ventilation tube making it a reliable and cost-effective solution for a wide variety of industrial-level measurement applications. It can keep working fine in liquids for more than ten years.
Application :
●Hydrostatic level measurement
●Water pressure level measurement
●Deep well and groundwater monitoring
●Sea water level measurement and control
●Borehole water level measurement
●Level measurement in pumping station
Advantages
01316SS all-welded stainless steel body and 316L stainless steel diaphragm
02Unique 8 pressure holes design
03IP68 full sealed plastic waterproof design
04Construction shock and erosion
05Optional lifetime lightning protection
Resources
Technical Data
|
Range |
0…500 m H2O optional |
|
Output |
4-20 mA,0-5 V,1-5 V,0-10 V,0.5-4.5 V,SDI-12,RS485 Modbus RTU... |
|
Power supply |
7-30 V DC,8-30 V DC,13-30 V DC,5 V DC,12 V DC |
|
Accuracy |
0.5%F.S; 0.25%F.S, 0.1%F.S by customized |
|
Working temperature |
-40 °C to +85°C |
|
Temp Compensation |
0°C to 50°C; -10°C to 70°C (Range > 200 kPa / 20 mH₂O) |
|
Zero-point Temp. Drift |
0.01%FS/°C |
|
Full scale Temp. Drift |
0.005%FS/°C |
|
Electronic connection |
Fixed cable and water proof IP68 |
|
Response time |
≤20 ms(current and voltage signals); ≤100 ms (digital signals) |
|
Cable |
PE, PUR, FEP cables with vents |
|
Certificate |
ATEX (II 1G Ex ia IIC T5 Ga), TUV, RoHS and CE |
