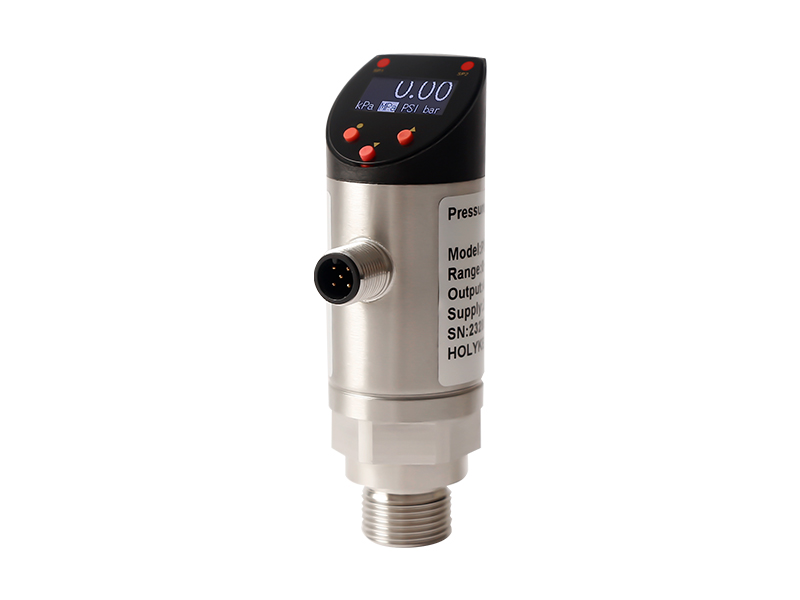

PS302 Digital Pressure Switch
The PS302 is an electronic pressure switch engineered to monitor and control pressure with exceptional precision and reliability across diverse applications. This modern switch seamlessly integrates traditional pressure monitoring with intelligent features, enhancing its versatility and user-friendliness.
Application:
●Hydropower
●Chemical
●City water supply
●Scientific research
●HVAC
●Industrial automation
Advantages
01Monocrystalline silicon smart sensor, accuracy up to 0.5% F.S
02Integrated measurement, display, output & control
03NPN, PNP compatible, free switching
04Quick field zero calibration and unit switching
05Switch signal damping and filtering algorithms
06Display information supports 180° rotation
07Instrument body supports 300° rotation
Resources
Technical Data
|
Measuring Range |
0~1MPa |
|
Power Supply |
12~30VDC, recommended 24V |
|
Accuracy |
0.5%F.S |
|
Overload Capacity |
150~300% FS |
|
Output |
4~20mA + PNP/NPN |
|
Pressure Interface |
M20x1.5 |
|
Electrical Connection |
5-pin aviation plug (M12-5 pins) |
