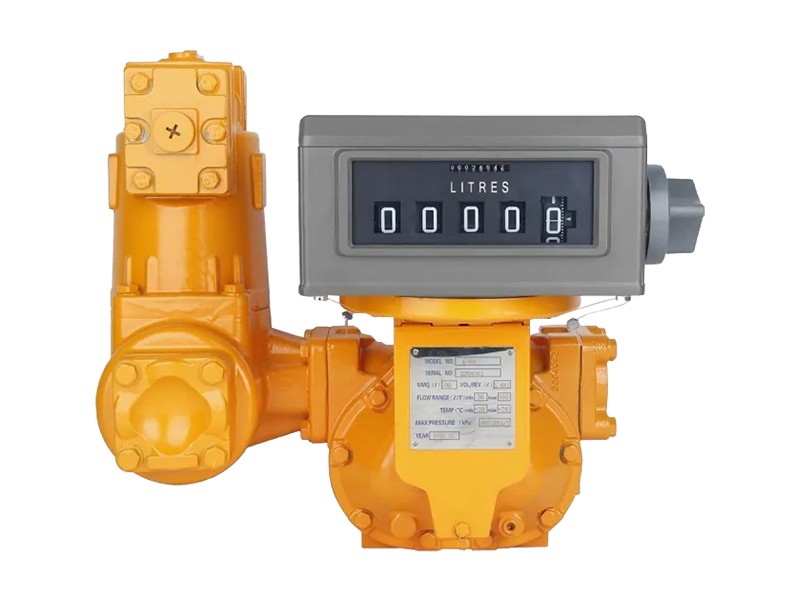

VF Volumetric Flow Meter
Volumetric flow meter uses a fixed small volume to repeatedly measure the volume of fluid passing through the flow meter. Therefore, there must be a space that constitutes a standard volume inside the positive displacement flowmeter, which is usually called the "metering space" or "metering chamber" of the positive displacement flowmeter.
Application :
●Oil refining
●Energy metering
●Water project
●Environmental protection project
●Pipeline transportation
Advantages
01The installation environment will not affect the measurement accuracy.
02Can be used for the measurement of high viscosity liquids.
03Direct-reading meter can directly obtain accumulated flow without external energy
04The measurement range is wide, and the range ratio can reach 1:10.
Resources
Technical Data
|
Flow rate |
M-40-1 1-1/2'' 23L-230L/min |
|
M-50-1 2'' 38L/min-380L/min |
|
|
M-80-1 3'' 76L/min-760L/min |
|
|
M-100-1 4'' 130L/min-1300L/min |
|
|
M-150-1 6'' 230L/min-2300L/min |
|
|
Max Pressure |
10Bar |
|
Standard measure unit |
Liter and US Gallon for option |
|
Repeatability |
0.05% |
|
Type of flange |
ANSI, NPT, BSPF |
|
Strainer mesh |
80Mesh for diesel, 40Mesh for gasoline |
