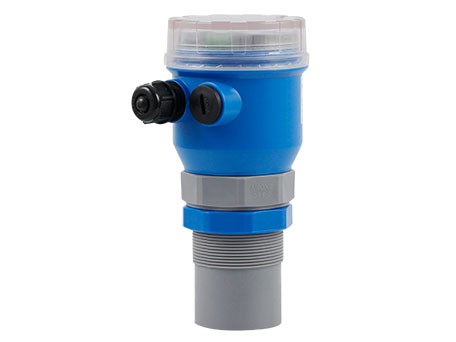

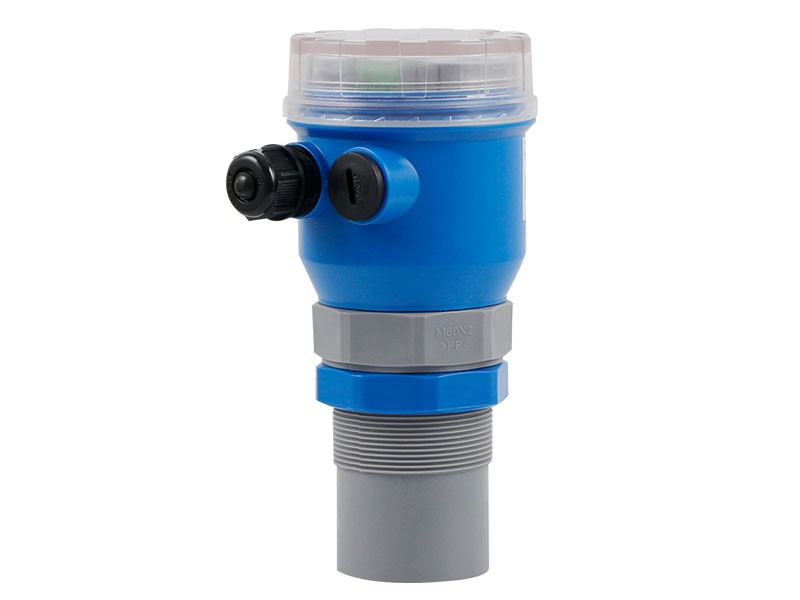

UE3001 Non Contact Ultrasonic Liquid Level Meter
The non contact ultrasonic liquid level meter have all gold-plated circuit boards, internal electromagnetic shielding and software digital filter are tested for (industrial) 48 hour under high and low temperature aging. It promises higher and long-term reliability.
Application :
● Non contact liquid level measurement
● Grout pool level monitoring
● Slurry pool level measurement
● Storage tank measurement
Advantages
01Support M60*2 mm threaded into type and coil clamping type installation
02Many model output optional customizable 4-20ma three-wire system
03Less than 200ms responsible time to make sure more accuracy
04 Wide range of application,Sealed high-temperature toxic volatile
05Housing adopts the NLEPE synthetic material IP66 waterproof,Anti-Skid,Anti-corrosion
06High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Resources
Technical Data
|
Level Range |
5, 7,10,12,15m optional |
|
Output |
1~5V/0~5V;4-20mA/RS485,RS232/NPN swith or relay |
|
Bline Zone |
5m range: 400mm; 5m~10m range: 500mm; 10m~15m range: 600mm |
|
Power supply |
DC24V/300mA |
|
Working temp |
-20℃ ~60℃ |
|
Pressure port |
M60 x 2 or Φ61mm hole with gasket (5m-15m range) DN80 nonstandard flange (20m-30m range) |
|
Application |
Liquids,solids |
