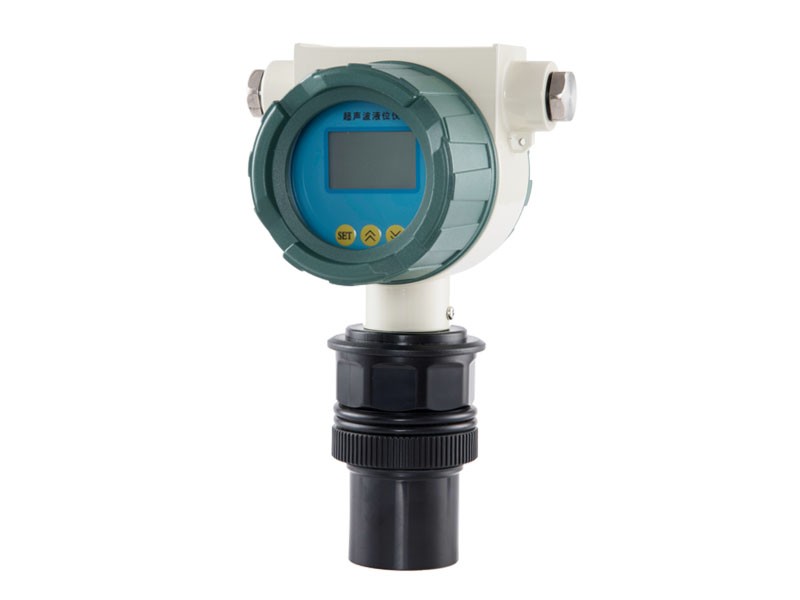

UE2000 Ultrasonic Fuel Level Sensor

Ultrasonic fuel level sensor is specially designed for fuel and flammable liquid level measurement. It has a built-in LCD display for field calibration.

Application :

● Ultrasonic fuel level measurement

● Non contact oil level measurement

● Diesel level monitoring

● Food grade level measure

● Butter storage tank level measurement

Advantages
01Non contact fuel level measuring instrument
02Built-in temperature sensor measures and displays temperature simultaneously
03Intergrative type easy installation with higher explosion proof
04 High accuracy 0.25%FS, long measure range 50m maximum
05Using ATMEL computing chip, data processing speed is more than twice that of other sensors
Resources

Holykell-Measuring Instrument

Technical Data

Level Range

0-2...50M optional



Output

A2=Current Output (4-20mA 2 wires) A3=Current Output (4-20mA 3 wires)
A4=Current Output (4-20mA 4 wires) N1/N2=Switch output (1 or 2 switches) J1 = Relay (Upper & Lower alarm) V1=Voltage output (0-5V)
V2= Voltage output (1-5V) R=Digital RS485(MCU Protocol) X=By Customized

Bline Zone

25~100cm

Power supply

U1=DC12V/max 300mA U2=DC24V/max 300mA (UE3001)
Ue=DC12V/max 300mA Ex

Working Temp

-20°C~+80°C

Water Proof IP68
Cable Length 001= 1 Meter 002= 2 Meters X= By Customized

Pressure port

M68*2.0 male; G 1-1/2 " male; M108*2.0 male
