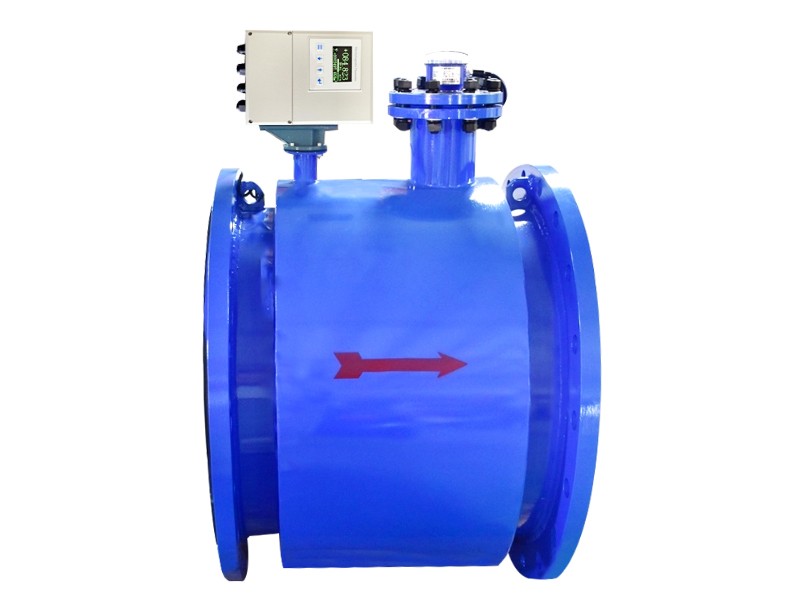

5000 Series Non Full Tube Magnetic Flow Meter
5000 series electromagnetic flow meter is a new flow meter that can be used in non-full tubes. It is ideal for water applications or any dirty liquids which is conductive or water based, including water, wastewater, corrosive liquids, pulps, acid, alkaline and salt solutions and other fluids. It features no moving parts without blockage concern and low-pressure drop, with low maintenance are required.
Application:
●Food and beverage
●Water treatment
●Chemical industry
●Electric power
●Paper-making industry
●Pharmaceutical
Advantages
01Non-full round pipe, rectangular pipe or other special-shaped pipes can be measured
02OLED display, with white/green/yellow digits optional
03Module battery with longer working time
0410 digits for accumulated flow display
05Forward and reverse two-way flow measurement
06GSM and GPRS wireless data remote transmission function(optional)
Resources
Technical Data
|
DN |
DN200-DN6000mm,rectangular pipe: width ≤6m |
|
Measurement accuracy |
water level ±2mm; flow rate ±1.0%; flow rate ±1.5% |
|
Measurement range |
flow rate 0.05-10m/s |
|
Output |
4-20mA/DC, Pulse output, RS232/RS485 Modbus RTU... |
|
Wireless data transmission |
GSM and GPRS optional |
|
Power supply |
220VAC or 12VDC, 24VDC |
|
Medium temperature |
≤60 ℃ |
|
Display |
Large screen OLED display can display instantaneous flow rate, flow rate, cumulative flow rate, liquid level and other measurement data at the same time |
