HVAC&R Pressure Sensor Transducer Transmitter
This HAVC pressure sensor is specially developed for refrigerant pressure measurement. It uses ceramic capacitive sensitive components and measures absolute pressure and sealed gauge pressure.
Application :
● HVAC System
● VRF
● Air conditioning refrigeration unit
● Compressor
● Air source heat pump
Advantages
01Ceramic capacitor core, anti-corrosion and signal interference resistance
02Enhanced accuracy over broad operating temperature range, -35°C to 105°C
03IP66 conformal coating applied, moisture-proof and anti-condensation supported
04Small temperature drift, 3 times burst pressure max, high reliability
05

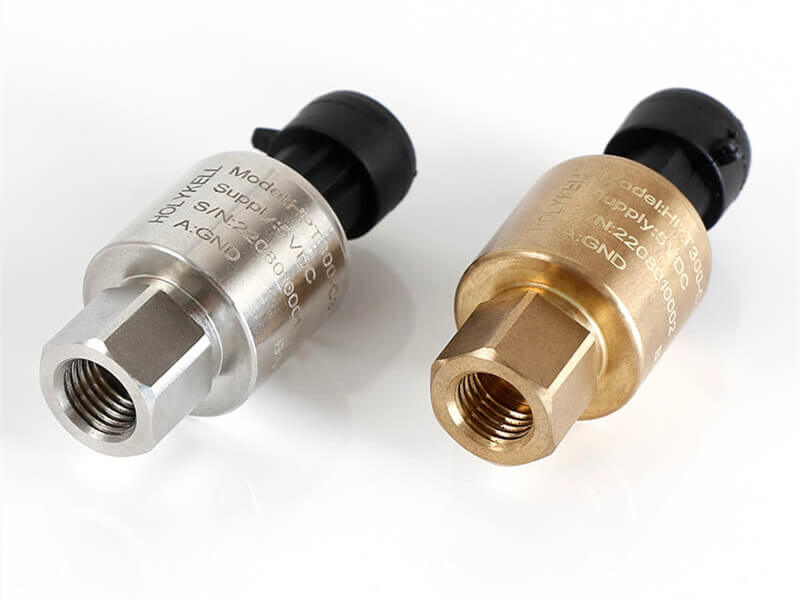

SS3 SS304 and brass housing optional, most media compatible
Resources
Watch the video for more details and don't forget to subscribe to Holykell Channel for the latest update!
Technical Data
Technical Data for Model HPT300-C3. Please contact us to get more models support for your projects.
|
Pressure Type |
Absolute(A)/sealed gauge(S) pressure optional |
|
Pressure Range |
-1-0-10 bar...65barS; 0-10...50barA optional |
|
Accuracy (At 25°C) |
≤ ±1.0%F.S (Typical) |
|
Electronic connection |
Packard Metri-Pack 3 Pin connector |
|
Pressure connect port |
7/16-20 UNF-2B |
|
Output |
0.5~4.5V ratiometric |
|
Power Supply |
5Vdc±5% |
|
Stability |
0.2%F.S±0.05%/Year |
|
Working Temp. |
-35℃~105℃ |
|
Temp. Compensation |
-20℃~80℃ |
|
Medium Compatible |
SS304/brass and ceramic compatible |
|
IP rating |
≥IP66 |
Download Technical Sheet.
HPT300-C2 Refrigeration Pressure Sensor
HPT300-C3 HVAC Pressure Sensor
HPT300-S Universal Pressure Sensor
HPT300-S1 Compact Pressure Sensor
HPT703 Micro Differential Pressure Transmitter
Please contact us to get more models support for your projects.
