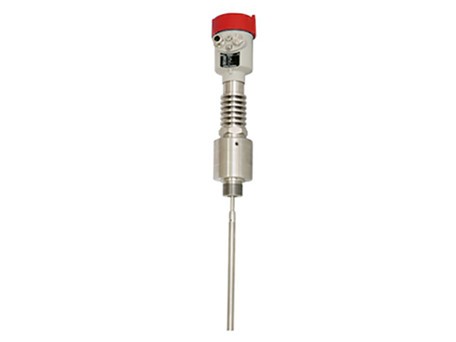

HR684 High Temperature Radar Distance Level Meter

High Temperature Guide wave radar level meter has strong and accurate NTS certified tape with stainless conductors. HR684 Radar Sensor special for Low Dielectric Constant Liquid measure.

Application :

●Deionized water

●Deoxygenated water

●Liquid Level

●Water level

●Fuel level

Advantages
01Non-contact radar, wear-resistant and no pollution
02High signal to noise ratio, even in the case of fluctuations can get better performance
0326GHz high frequency, compared with the low-frequency radar level meter, the measurement blind zone is smaller
04Using pulse mode, the radar level gauge has very low transmission power and no harm to human body and environment
Resources

Holykell-Measuring Instrument

Technical Data

Suitable for Medium

Liquids, particularly low dielectric constant liquid

Explosion-proof Grade

Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range

6m

Frequency

500MHz-1.8GHz

Antenna

Coaxial tube type antenna

Accuracy

±5mm

Process Temperature

(-40~250)℃

Process pressure

(-0.1~4)MPa

Signal output:

(4~20)mA/HART

The Scene Display

Four LCD/Can be programmed

Power Source

Two-wire (DC24V) ;Four-wire(DC24V/AC220V)

Shell

Aluminum /Plastic

Connection

Thread / Flange (optional)
