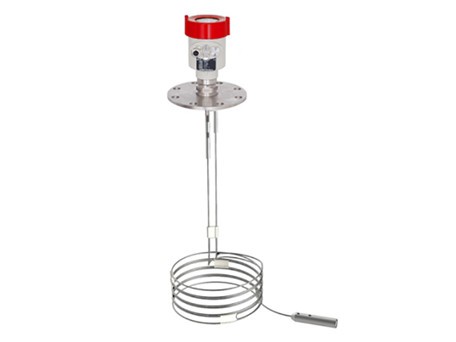

HR683 Long Range Radar Liquid Level Sensor

Long range radar liquid level sensor is a non-contact, microprocessor controlled, easy to install and maintain digital level instrument,to realize the antenna to the surface of medium distance measureme

Application :

●Solid Powder

●Cement silo Powder

●Ash power measure

●Solid oil

Advantages
01Guided Wave Radar Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media. Pulsed work
02Guided wave radar level instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.
Resources

Holykell-Measuring Instrument

Technical Data

Suitable for Medium

Solid powder

Explosion-proof Grade

Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range

30m

Frequency

500MHz-1.8GHz

Antenna

Double cable type antenna

Accuracy

±10mm

Process Temperature

(-40~150)℃

Process pressure

(-0.1~4)MPa

Signal output:

(4~20)mA/HART

The Scene Display

Four LCD/Can be programmed

Power Source

Two-wire (DC24V) ;Four-wire(DC24V/AC220V)

Shell

Aluminum /Plastic

Connection

Flange (optional) / Thread
