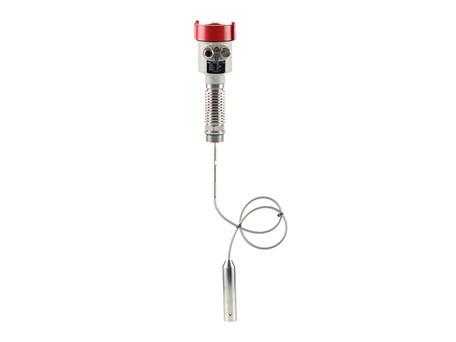

HR681 Guided Wave Radar Level Meter

Guided Wave Radar level meter is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.

Application :

●Solid

●Powder

●Wine

●Complicated process conditions

●Liquid Level

Advantages
01As a result of advanced microprocessor and unique Discovery echo processing technology
02Guided wave radar level meter can be used in a variety of complex conditions
03Suitable for a variety of complex conditions and applications
04High temperature, high pressure and low dielectric constant media. Pulsed work
Resources

Holykell-Measuring Instrument

Technical Data

Measuring Range

30m

Frequency

500MHz-1.8GHz

Antenna

Single cable or single rod antenna

Accuracy

±10mm

Process Temperature

(-40~250)℃

Process pressure

(-0.1~4)MPa

Signal output:

(4~20)mA/HART

The Scene Display

Four LCD/Can be programmed

Power Source

Two-wire (DC24V);Four-wire(DC24V/AC220V)

Shell

Aluminum /Plastic

Connection

Flange (optional) / Thread

Explosion-proof Grade

Exia IIC T6 Ga/Exd ia IIC T6 Gb
