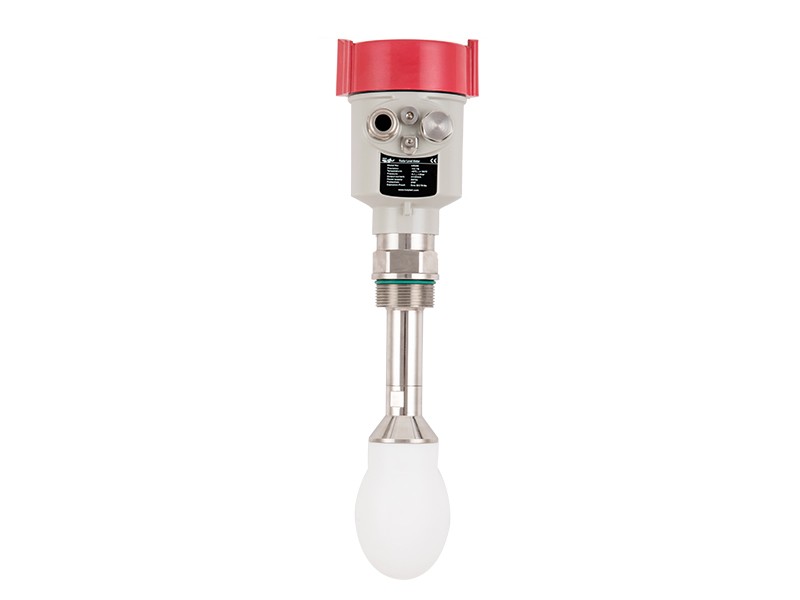

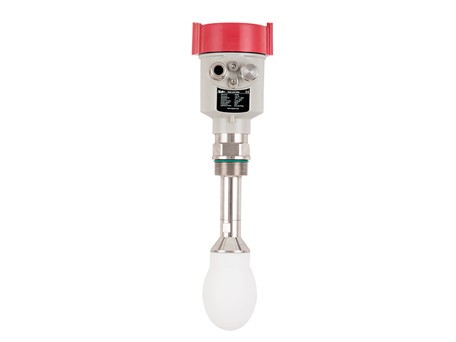

HR266 26G Radar Liquid Level Sensor

HR266 High quality radar liquid level sensor for corrosive liquid measurement, It is a non-contact, microprocessor controlled, easy to install and maintain digital level instrument.

Application :

●Slurry

●Condensation

●Corrosive liquids

●Liquid with foam

●Heap material field

Advantages
01High precision; Strong anti-interference ability, not affected by temperature, humidity and wind power
02Simple installation and debugging; Low power consumption
03Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference
Resources

Holykell-Measuring Instrument

Technical Data

Measurement Span

0 to 20 meters

Signal Output:

4...20mA/HART (2 wires/4 wires) RS485/Modbus

Process Connection

Thread or Flanges

Medium Temperature

-40~150℃

Process Pressure

-1Bar~1 Bar

Accuracy

±3mm

Proof Grade

IP67

Supply

DC24V or 85-265VAC

The Frequency Span

up to 26G Hz

Explosion proof grade

Exib ⅡCT6 Gb

Order information
Range: 0-5m                       Output: 4-20mA                   Application: powder
