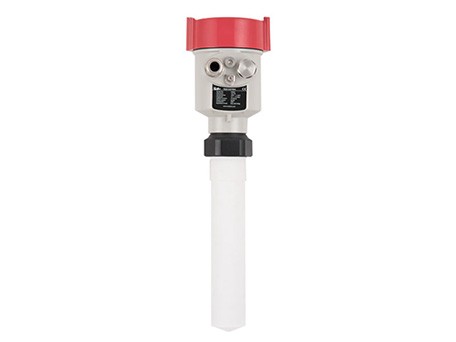

HR261 High Frequency Radar Level Sensor

26GHz high frequency radar level sensor is a non-contact,microprocessor controlled, easy to install and maintain digital level instrument, Small beam Angle, the energy concentration, strong anti-interference

Application :

● All kinds of corrosive liquid

● Grout pool

● Coal slurry pool

● Chemical

● Butter storage tank

● Wineries

Advantages
01Antenna size is small, easy to install
02High Launch frequency up to 26GHz
03Fast response, suitable for noisy or adverse conditions
04The low noise ratio, even in case of fluctuations can get better performance
05Measure blind spots smaller canisters measure will achieve good results
Resources

Holykell-Measuring Instrument

Technical Data

Application

All kinds of corrosive liquid

Measurement  Span

0 to 20 meters

Output

Signal Output: 4...20mA/HART (2 wires/4 wires) RS485/Modbus

Process Connection

Thread or Flanges

Medium  Temperature

-40~120℃

Process Pressure

-1Bar~3 Bar

Accuracy

±5mm

Proof Grade

IP67

Supply:

DC24V or 85-265VAC

The Frequency Span

up to 26G Hz

Explosion proof grade

Exib ⅡCT6 Gb

Order information: Range:0-5m ,Output:4-20mA,Application:For Cossosivel liquid
