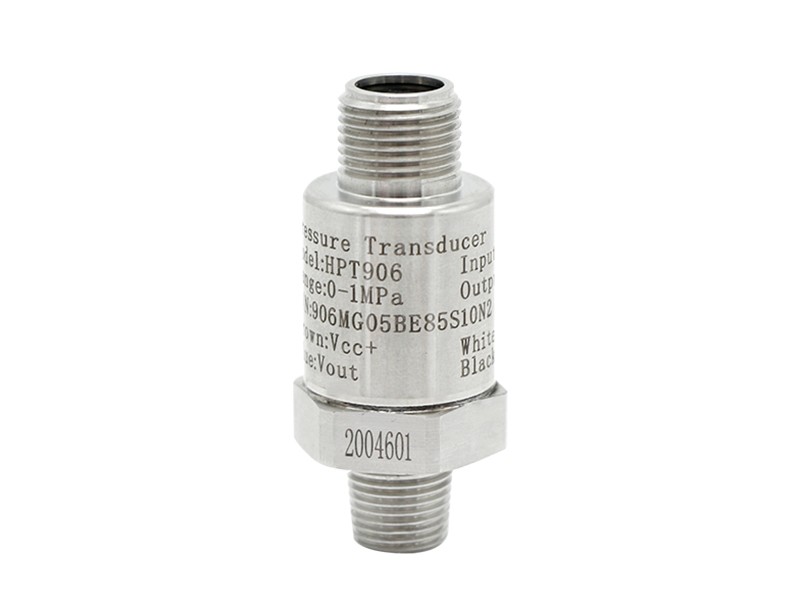

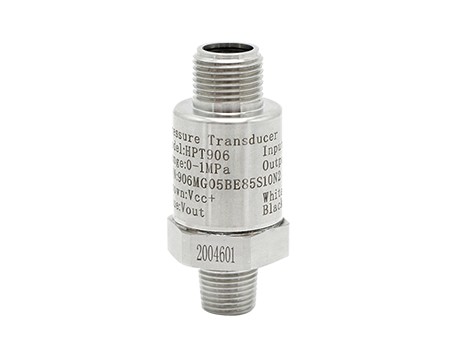

HPT906 Thin Film Hydraulic Pressure Sensor

Thin film hydraulic pressure sensor sputtered thin film pressure transducer unit offers an unbeatable price/performance ratio in a small package size. It features all-stainless steel wetted parts, and hermetically sealed enclosures without O-rings.

Application :

● Process Controls

● Filter Performance Monitoring

● Corrosive Fluids and Gas Measurement Systems

● Orifice Plates and Mass Flow Meters

● Static Pressure Measurement and Control

● Combustion Chambers and Clean Rooms

Advantages
01Germany sputtered film pressure sensors.
02High Proof Pressures 2000 bar.
03Compact, 316 Stainless Steel, Hermetically Sealed Enclosure.
03Max 10 years static pressure lifetime.
Resources

Holykell-Measuring Instrument

Technical Data

Parameter

HPT906





Pressure Range

0-5Bar.....2000 Bar  Optional

Overload

300% F.S. (5…25Bar),200% F.S. (40…600Bar),150% F.S.(700…2000Bar)

Burst Pressure

4000% F.S.(5…25Bar),1000% F.S. (40…600Bar),200% F.S.(700…2000Bar)

Accuracy:

≤ ±1.0%F.S Typical

(Linearity Hysteresis

≤ ±0.5%F.S (Optional)

Repeatability)

≤ ±0.25%F.S (Customized)

Including non-lin., rep. and hys. Optional

Long Stability

≤ ± 0.1%F.S/Year



Medium Temp

-40℃ …105℃ (Typical); -55…150℃ (by customized)

Ambient temp

-40℃… 85℃(Typical); -55…145℃ (by customized)

Temperature compensation

0℃~80℃

Medium compatible

Compatible with 316L Stainless Steel

Electronic Wire

2 Wires

3 Wires

 Output

4~20mA

0~5V

0.5~4.5 V

Power Supply

8~32 VDC

8~32 V DC/5 VDC

5VDC

Insulate resistance

(U-10)/0.02 (Ω

For Current Type: (U-10)/0.02 (Ω), For Voltage Type: >100 KΩ

Load resistance

>500M Ω @250V



Zero Temp. Drift

0.02%F.S./℃

Sensitive Temp. Drift

0.02%F.S./℃

Vibration Influence

5-1000 Hz, 2mm Amplitude, X,Y,Z 30 minutes, output changes less than 0.03%F.S. 50g;

Impact Influence

50g; 11ms GB/T2423.5-1995

Materials

17-4PH Stainless steel (diaphragm); others 304 or 316 stainless steel

Electronic connection

4 Pins M12 Connectors IP45

Pressure connect port

G1/4’’male, 1/4’‘NPT male optional. (or mass order by customized)

Certificate

CE approving or intrinsic safety by customize.

Electromagnetic compatibility

EN 61326-1:2013; EN 61326-2-3:2013

Response time

≤1ms
