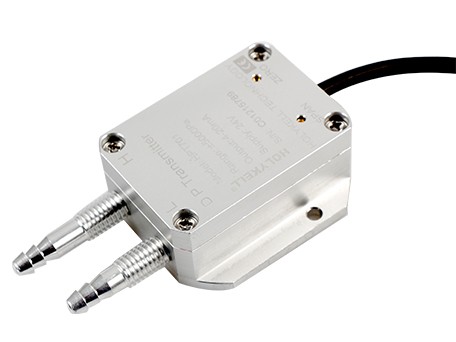

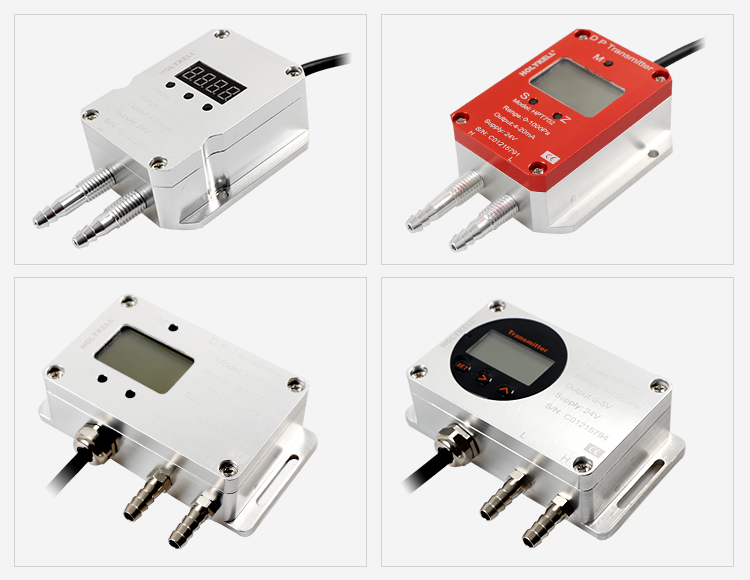

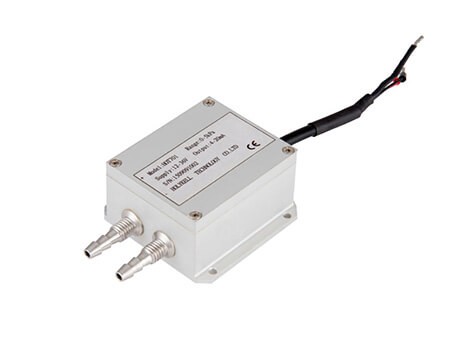

HPT701 Low Cost Air Differential Pressure Sensors

HPT701/702 Differential pressure transmitter is precision engineered for monitors differential pressure of air and compatible gases commercial and OEM applications and liquids with 0.5% accuracy.

Application :

● HAVC Air differential pressure

● Wind pipe pressure measurement

● Wind machine

● Industrial dust removal equipment

● Purification plant

● Blow down ex pander

Advantages
01Min 1 Pa gas pressure sensiti.
02Advanced digital temperature compensation.
03Germany silicon chips assembled.
04Anti-Humidity and waterproof.
051.5 times range standard overload.
Resources

Holykell-Measuring Instrument

Technical Data

Pressure Range:

0 to 2kPa…1000KPa,±1kPa…±100kPa,-1Bar-1...10Bar optional

Static Pressure

≤20Bar

Accuracy:

≤±1.0%F.S.  ≤ ±0.5%F.S  Optional

Long Time Stability:

Standard: 0.25%F.S

Working Temp:

-20℃~85℃

Zero Point Temp Drift:

≤±0.5%F.S/℃

Full Scale Temp Drift:

≤±0.1%F.S/℃

Zero Error:

≤±0.5%F.S

Total Error:

≤±0.75%F.S

Medium compatible:

Air or non-corrosive gas

Electronic Wire:

2 Wire

3 Wire

Output:

4~20mA

1~5V

0~5 V

Power Supply:

12 ~ 30 V DC

10~ 30 V DC

10~ 30 V DC

Pressure

connect port:

RG=Ø6.5 gas mouth or M10*1 male thread optional.

EMC Standard:

Approving
