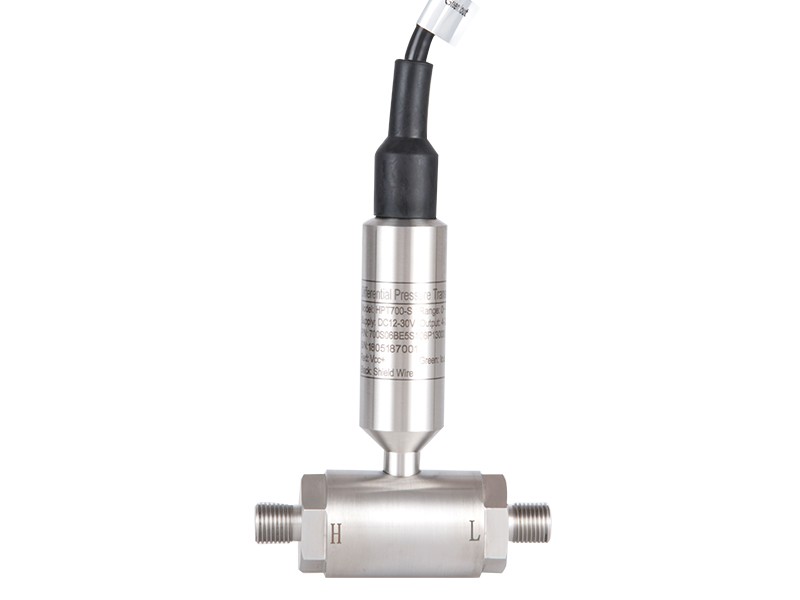

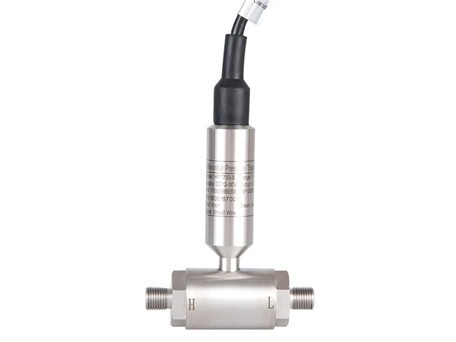

HPT700S Standard Industry Differential Pressure Transmitter
HPT700S Differential pressure sensing technology offers 0.25% accuracy with static operating pressures up to 4MPa. With its digital compensation, the HPT700 DP offers excellent linearity and performance over temperature,long, reliable service life with excellent long term stability.
Application :
● Process Controls
● Tank Level Measurement
● Filter Performance Monitoring
● Corrosive Fluids and Gas Measurement Systems
● Orifice Plates and Mass Flow Meters
● Static Pressure Measurement and Control
Advantages
01Broad Compensated Temperature Range
02Durable, 1 Million Cycle Life
03Ruggedness with Secondary Containment
04Precision Micro-Machined Silicon Core
05Explosion Proof and Non-Incendive Available
06High Stability, Low Drift
Resources
Technical Data
|
Pressure Range |
10～50KPa |
51～100KPa |
101～200KPa |
201～1000KPa |
|||||
|
High port overload |
50～500 kPa |
500～1000 KPa |
10～20 Bar |
20～40Bar |
|||||
|
Low port overload |
30～150KPa |
150～300KPa |
300～600KPa |
600～1000KPa |
|||||
|
Max Static Pressure |
50 bar |
100 bar |
150bar |
200bar |
|||||
|
Accuracy |
≤±0.5%F.S (Typical); ≤±0.25%F.S (by customized); |
|
|
||||||
|
Stability |
0.1%F.S/Year |
|
|
|
|||||
|
Ambient Temp Span |
-40℃~85℃ |
|
|
|
|||||
|
Medium Temp Span |
-40℃~85℃ / -40℃~125℃(with cool device) |
|
|
||||||
|
Storage Temp |
-40℃~105℃ |
|
|
||||||
|
Temperature
compensation |
0℃~50℃ |
|
|
|
|||||
|
Zero Temp Drift |
0.02%F.S/℃ |
|
|
|
|||||
|
Span Temp Drift |
0.02%F.S/℃ |
|
|
|
|||||
|
Medium compatible |
Compatible with 316 Stainless Steel |
||||||||
|
Power Supply |
7~30Vdc |
8~30Vdc |
15~30Vdc |
|
7-30Vdc |
||||
|
Load resistance |
(U-10)/0.02(Ω ) |
>100kΩ |
Max 255 |
||||||
|
Insulate resistance |
>100M Ω @100V |
|
|
|
|
|
|||
|
Electronic connection |
Fixed cable and water proof IP67 (HPT700-S); Terminal Box DIN43650 IP65 (HPT700-H,HPT700-G) |
||||||||
|
Pressure connect port |
1/4’’-18NPT Female; G1/4’’ Male; G1/2’’ Male; RG=Ø8/ Ø 10gas mouth optional. (by Customized) |
||||||||
|
Process structure |
All-Welded Construction (non-O-rings) |
|
|||||||
|
Response time |
≤10ms |
|
|
|
|
|
|||
|
Pressure Type |
Differential Pressure (Gauge Type) |
|
|
||||||
|
Certificate |
ExiaIICT6 and CE Certificate. |
|
|||||||
|
EMC Standard |
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
||||||||
|
Water Proof |
IP65 to IP68 optional by model |
||||||||
|
Weight |
Net weight is about 0.4KG, Full Packing weight is about 0.7KG (Including 3 Meters Cable) |
||||||||
