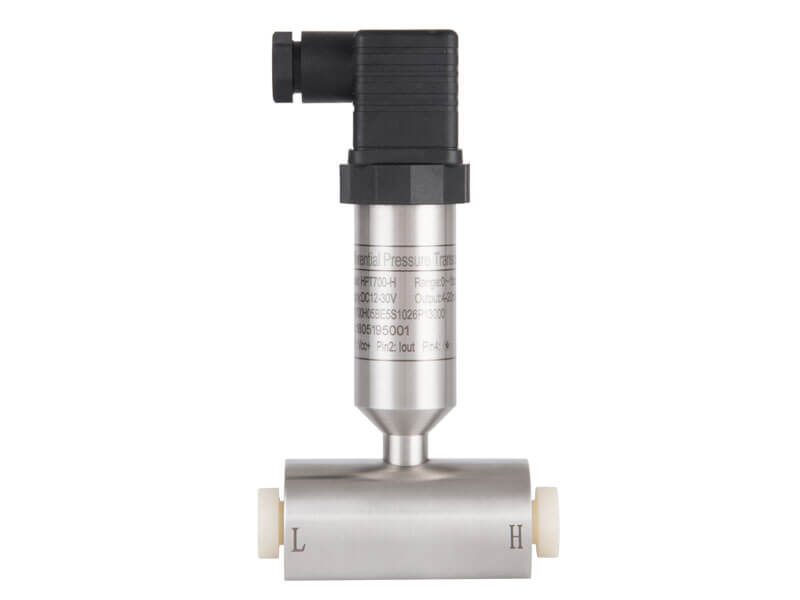

HPT700H Standard Industry Differential Pressure Transducers
HPT700H Standard Industry Differential Pressure Transducers get all the great performance characteristics of the Micro-Machined Silicon Transducers in these 316 stainless steel differential pressure models.
Application :
● Process Controls
● Tank Level Measurement
● Filter Performance Monitoring
● Corrosive Fluids and Gas Measurement
● Static Pressure Measurement and Control
Advantages
01Precision Micro-Machined Silicon Core;
02Explosion Proof and Non-Incendive Available.
03High Stability, Low Drift.
04316 Welded Stainless Steel Construction.
05Premium Temperature Performance.
Resources
Technical Data
|
Pressure Range |
10～50KPa |
51～100KPa |
101～200KPa |
201～1000KPa |
|||||
|
High port overload |
50～500 kPa |
500～1000 KPa |
10～20 Bar |
20～40Bar |
|||||
|
Low port overload |
30～150KPa |
150～300KPa |
300～600KPa |
600～1000KPa |
|||||
|
Max Static Pressure |
50 bar |
100 bar |
150bar |
200bar |
|||||
|
Accuracy |
≤±0.5%F.S (Typical); ≤±0.25%F.S (by customized); |
|
|
||||||
|
Stability |
0.1%F.S/Year |
|
|
|
|||||
|
Ambient Temp Span |
-40℃~85℃ |
|
|
|
|||||
|
Medium Temp Span |
-40℃~85℃ / -40℃~125℃(with cool device) |
|
|
||||||
|
Storage Temp |
-40℃~105℃ |
|
|
||||||
|
Temperature
compensation |
0℃~50℃ |
|
|
|
|||||
|
Zero Temp Drift |
0.02%F.S/℃ |
|
|
|
|||||
|
Span Temp Drift |
0.02%F.S/℃ |
|
|
|
|||||
|
Medium compatible |
Compatible with 316 Stainless Steel |
||||||||
|
Power Supply |
7~30Vdc |
8~30Vdc |
15~30Vdc |
|
7-30Vdc |
||||
|
Load resistance |
(U-10)/0.02(Ω ) |
>100kΩ |
Max 255 |
||||||
|
Insulate resistance |
>100M Ω @100V |
|
|
|
|
|
|||
|
Electronic connection |
Fixed cable and water proof IP67 (HPT700-S); Terminal Box DIN43650 IP65 (HPT700-H,HPT700-G) |
||||||||
|
Pressure connect port |
1/4’’-18NPT Female; G1/4’’ Male; G1/2’’ Male; RG=Ø8/ Ø 10gas mouth optional. (by Customized) |
||||||||
|
Process structure |
All-Welded Construction (non-O-rings) |
|
|||||||
|
Response time |
≤10ms |
|
|
|
|
|
|||
|
Pressure Type |
Differential Pressure (Gauge Type) |
|
|
||||||
|
Certificate |
ExiaIICT6 and CE Certificate. |
|
|||||||
|
EMC Standard |
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1 |
||||||||
|
Water Proof |
IP65 to IP68 optional by model |
||||||||
|
Weight |
Net weight is about 0.4KG, Full Packing weight is about 0.7KG (Including 3 Meters Cable) |
||||||||
