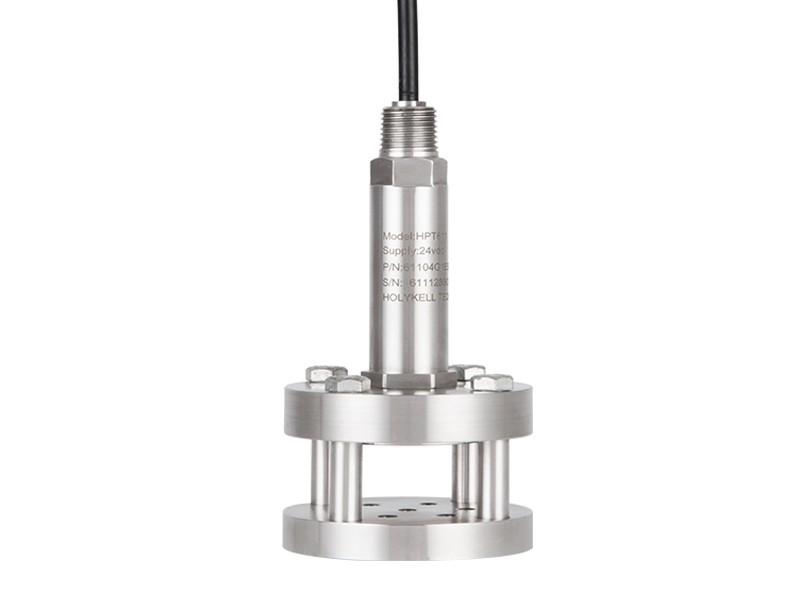

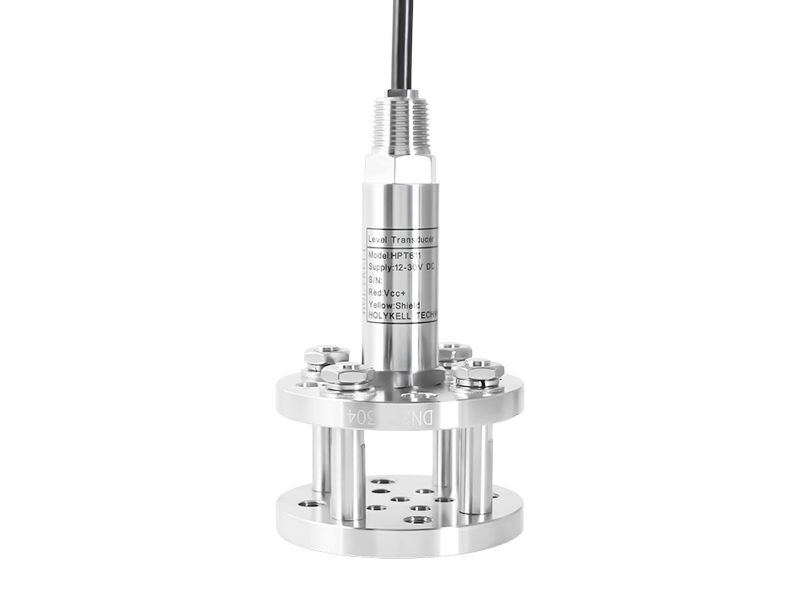

HPT611 Anti Clogging Slurry Level Sensor

The anti clogging slurry level transmitter is the most effective solution for sewage or waste water with viscous medium level measurement.

Application :

●Sewage water level in lift station

●Slurry level measurement

●Sewage water take level monitoring

●Mud water level measurement

Advantages
01All 316L stainless steel construction for durability
02Open double Flange design
03Added weight prevents movement of the Transmitter
04Cable withstand over 200 pounds of strain
05Ingress protection up to IP 68
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~1 M…200 M H2O optional

Output

4~20mA;0-10V/0-5V;RS485 RTU Modbus

Power supply

12VDC~30VDC

Accuracy

0.15%F.S;0.25%F.S; 0.5%F.S optional

Working temperature

                      -30°C~+85°C

Temp Compensation

0°C~70°C

Zero Temp. Drift

0.05%FS/°C(≤100kPa);0.03%FS/°C(>100kPa)

FS Temp. Drift

0.02%FS/°C(≤100kPa),0.01%FS/°C(>100kPa)

Process Connect

88 mm (3.5’’) Flange, nylon nose cap, DN50 Flange,

DN80 , DN100 Flange optional

Body Diameter

28 mm

Certificate

CE,ExiaII CT6 Ga ,ATEX,RoHS

Application

Large of Viscosity or impurity medium,

like crude oil etc

Order information
Level range: 0-5m                           Output: 4-20mA
Power supply: 12~36VDC               Power supply: 12~36VDC
