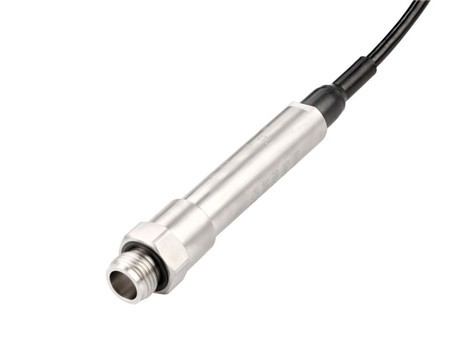

HPT608 Submersible Marine Liquid Level Transducer

HPT608 Submersible marine liquid level transducer suitable for flood and river level monitoring. It consists of a imported MEAS TE piezoresistive sensing element encased in a 316 SS housing.

Application :

●Marine liquid level measurement

●Level measurement in seawater and vessel

●Ship draught measurement

●Sea Port wharf level measurement

Advantages
01Classification society explosion proof certification approved
02All titanium alloy shell design, no fear of any seawater corrosion
03Fast response, suitable for noisy or adverse conditions
04Capacitive ceramic core with high accuracy 0.1%FS
05Corrosive materials and high quality polyethylene wire
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~2 M…200 M H2O optional

Output

4~20mA (2 wires),RS485 RTU Modbus

Power supply

12VDC~30VDC

Body Material

316L Flush diaphragm ,316 SST ,Titanium Alloy

Accuracy

0.1%F.S;0.25%F.S optional

Working temperature

-20°C~+80°C

Temp Compensation

-20°C~70°C

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Process mounting

Filter Cover; G1/2’’ Female thread;



Flush Diaphragm O-rings Mounting optional

Dimension

Length: 140 mm (standard); Body diameter: 25-40 mm (standard)

Certificate

CE,ExiaII CT6 Ga ,ATEX,RoHS

Application

Marine and Vessel application

Order information
Level range: 0-5m                  Output: 4-20mA              Power supply: 12~36VDC
