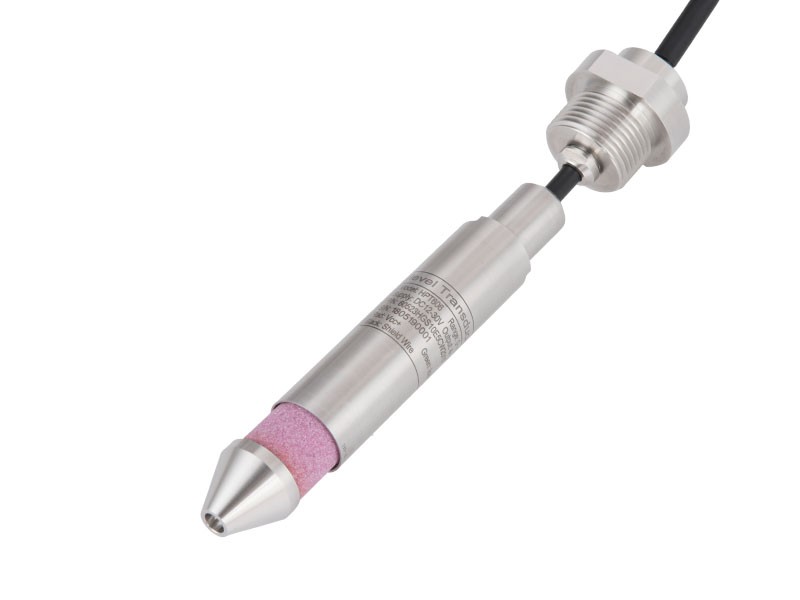

HPT606 Submersible Sludge Level Transmitter

The submersible sludge level transmitter is specially used to measure the sludge level in river or lake water.It adopts ceramic filter design, which can filter gravel and water weeds in the medium.

Application :

●River water level sensoro:p>

●Level measurement in rivers or lakes

●Flood monitoring/warning

●Pond water level monitoring

Advantages
01Adopts a removable 30 um ceramic filter nose without cleaning
02Running longer by reducing downtime and maintenance costs
03Low-power output signals for battery-operated or solar measuring systems available
04lightning surge reverse protection
05USA TE chip and military grade digital PCB board
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~1 M…500 M H2O optional

Output

4~20mA,0~5V/0.5~4.5V/0-10V

Power supply

12VDC~30VDC/5Vdc /7~30VDC

Pressure port

Ceramic filter cover IP68

Accuracy

0.15%F.S,0.25%F.S, 0.5%F.S optional

Working temperature

-30°C~+85°C A114or -40°C~100°C(Customized)

Temp Compensation

-10°C~60°C or by Customized

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Electronic connection

Fixed cable and water proof IP68

Response time

≤4 to 10 ms; ≤1 ms (Customized)

Certificate

CE,RoHS

Application

Flood,Lake ,River,Pond,Dams etc

Order information
Level range: 0-5m                               Output: 4-20mA
Power supply: 12~36VDC                   5m directly cable : IP68
