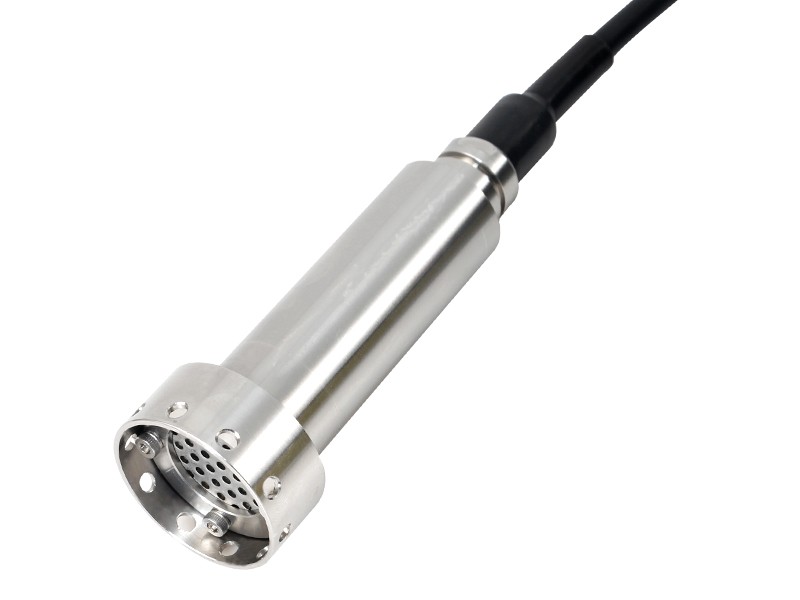

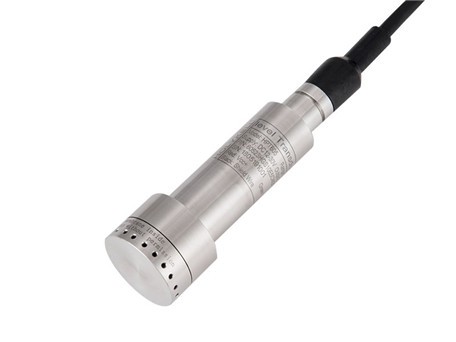

HPT605 Submersible Sewage Water Level Transducer
The submersible sewage water level transducer can be used for measuring in polluted environment for a long time. It can not only automatically conduct atmospheric and temperature compensation, but also reduce the temperature drift.
Application :
●Sewage water level measurement
●Level measurement in water suction pump
●Canal water level monitoring
●Municipal sewage level measurement
●Sediment water level measure
Advantages
01A removable large diameter 50mm filter nose with 20 pressure hole design
02Surge protection and polarity protection are available
03Automatic conduction of atmospheric and temperature compensation
04Fast response, suitable for noisy or adverse conditions
05Lowe-Power output signals
Resources
Technical Data
|
Range |
0~1 M…500 M H2O optional |
|
Output |
4~20mA,0~5V/0.5~4.5V/0-10V/1-5V |
|
Power supply |
12VDC~30VDC/5Vdc |
|
Pressure port |
Φ40 mm Thread with filter cover IP68 |
|
Accuracy |
0.25%F.S, 0.5%F.S optional |
|
Working temperature |
-30°C~+100°C |
|
Temp Compensation |
-10°C~60°C or by Customized |
|
Zero Temp. Drift |
0.03%FS/°C（≤100kPa）; 0.02%FS/°C（>100kPa） |
|
FS Temp. Drift |
0.003%FS/°C（≤100kPa）; 0.002%FS/°C（>100kPa） |
|
Electronic connection |
Fixed cable and water proof IP68 |
|
Response time |
≤4 to 10 ms; ≤1 ms (Customized) |
|
Certificate |
CE,RoHS |
|
Application |
City water,Drainage, Sewage pump station etc |
Order information
Level range: 0-5m Output: 4-20mA
Power supply: 12~36VDC 5m directly cable : IP68
