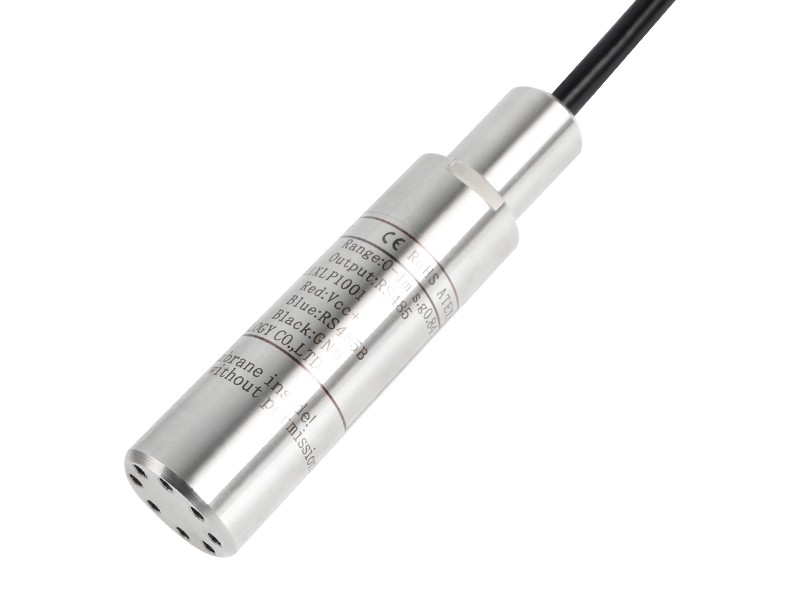

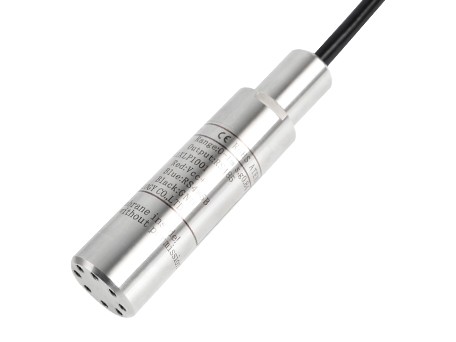

HPT604-Fuel Submersible Fuel Level Transmitter
Submersible Fuel Level Sensor is commonly known as "fuel probe", which is mainly used to measure the level of fuel, diesel or gasoline tanks. The probe is designed with a filter screen, which can filter most of the impurities and ensure the stability of the measurement.
Application :
●Can be used with diesel generators and wireless modules
●Monitoring of Gasoline & Diesel Fuel Tanks
●Level Measurement in Ballast Tanks
●Level Measurement in Oil Tanks
●Monitoring of Contain Coolant for Diesel Engines
Advantages
01Unique impurity filter screen design for measurement accuracy
02Customized PTFE cables without fear of any corrosive environment
03Custom level ranges from 50cm to 500m
04CE, RoSH and ATEX Approved
05Throw in any fuel more than 10 years
Resources
Technical Data
|
Range |
0~0.5 M…500 M H2O optional |
|
Output |
4~20mA,0~5V/0.5~4.5V;RS485 ,RS232,Hart |
|
Power supply |
12VDC~30VDC |
|
Accuracy |
0.15%F.S,0.25%F.S, 0.5%F.S optional |
|
Working temperature |
-30°C~+85°C |
|
Temp Compensation |
-10°C~60°C or by Customized |
|
Zero Temp. Drift |
0.03%FS/°C（≤100kPa）； 0.02%FS/°C（>100kPa） |
|
FS Temp. Drift |
0.003%FS/°C（≤100kPa）； 0.002%FS/°C（>100kPa） |
|
Electronic connection |
Fixed cable and water proof IP68 |
|
Response time |
≤4 to 10 ms; ≤1 ms (Customized) |
|
Cable |
PUR cable with vents |
|
Certificate |
CE,RoHS ATEX ExiaII CT6 Ga |
|
Application |
Bio-Fuels,Gasoline & Diesel Fuel Tanks,Kerosene etc |
Order information
Level range: 0-5m Output: 4-20mA
Power supply: 12~36VDC 5m directly cable: IP68
