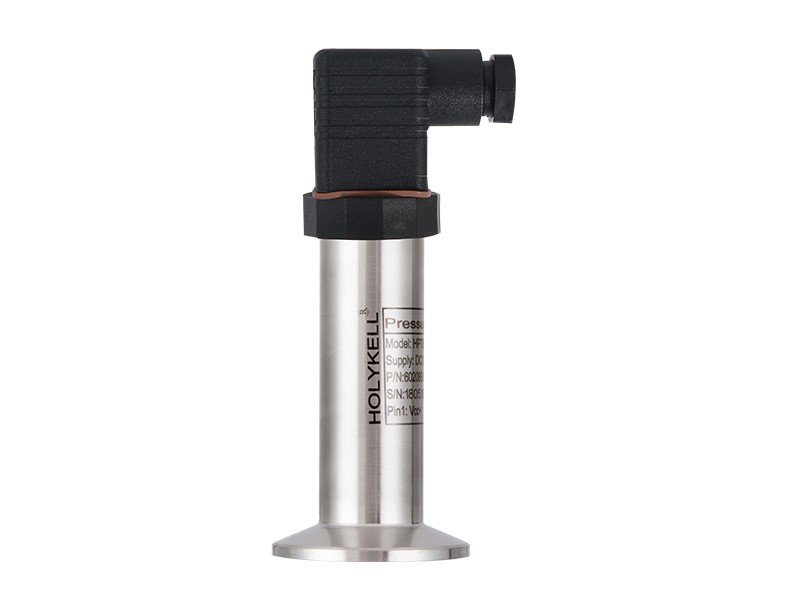

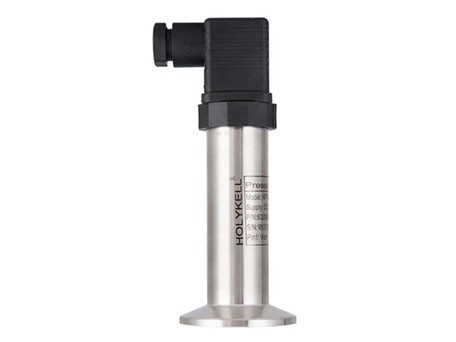

HPT602 Flush Diaphragm Pressure Transmitter With Tri-Clamp

Tri-Clamp type flat diaphragm sanitary pressure transmitter,can be customized to 150 ℃. A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured.

Application :

● Food and beverage industry

● Filling and packing machinery

● Dairy and beverage processing

● Pharmaceutical

● Dosing technology

Advantages
01For Sanitary or CIP (Clean-in-Place) Applications
02316L stainless steel diaphragm, welded 316SS body construction shock and erosion
03Flush process connection eliminates plugging
04Advanced digital temperature compensation
05Available with an integral cooling extension for high temperature applications
Resources

Holykell-Measuring Instrument

Technical Data

Range

0~0.2 bar…600 bar optional

Output

4~20mA,0~5V/0~10V/0.5~4.5V,Digital RS485

Accuracy

0.15%F.S,0.25%F.S, 0.5%F.S optional

Power supply

12VDC~30VDC /7-30V

Pressure port

G1/2",G1",M20*1.5 male  Clamp Φ50 mm

Working temperature

-40°C~+150°C

Temp Compensation

-10°C~80°C or by Customized

Zero Temp. Drift

0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)

FS Temp. Drift

0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa)

Response time

≤4 to 10 ms; ≤1 ms (Customized)

Certificate

CE,RoHS

Application

Food ,Juice,milk ,Sanitary liquid industry

Order information

Pressure range : 0-20bar , Output : 4-20mA , Power supply : 12~36VDC ,

Process connection : G1/2"male , 5m directly cable : IP66 .
