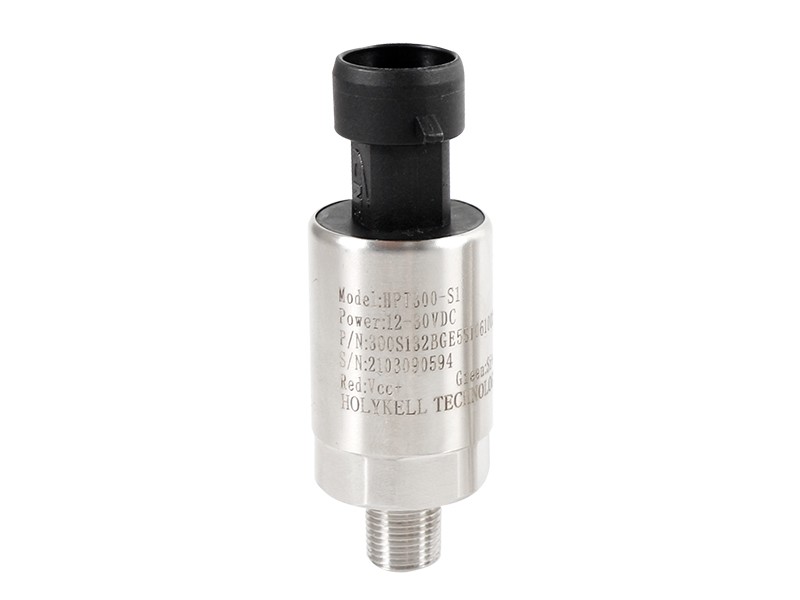

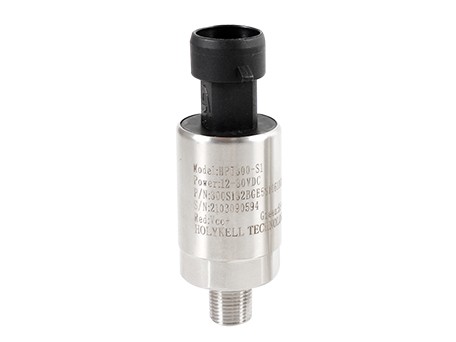

HPT300-S1 Compact Pressure Sensor
Compact oem pressure sensor with integrated Germany Ceramic sensors for manufacturing, and the advanced circuit design to avoid influences on the product caused by the temperature, humidity, and medium.
Application :
● Hydraulic pressure
● Water supply system
● Air compressors
● Building water supply
● Braking system
● Process control and automation
Advantages
01Reliable and longlasting in harsh application
02Water hammer design, shock-proof, avoid instant overpressure damage
03High strength stainless steel construction
04Automatic temperature compensation 0-80℃
05Full sealed high stability impact design
Resources
Technical Data
|
Parameter |
HPT300-S1 |
|
|||||
|
Pressure Range |
Gauge /Negative/Absolute pressure optional |
||||||
|
Overload |
150% F.S. |
|
|||||
|
Burst Pressure |
200% F.S. |
|
|||||
|
Accuracy |
≤ ±0.5%F.S (Typical) ≤ ±0.25%F.S (By Customized)
|
|
|
|
|||
|
Total Error Band |
0...50 °C max. ≤±1.0%FS; -20...80 °C max. ≤±2.0 %FS |
||||||
|
Stability |
0.2%F.S±0.05%/Year |
||||||
|
Working Temp |
-35℃~125℃ |
||||||
|
Storage Temp |
-40℃~125℃ |
||||||
|
Temperature Compensation |
0℃~50℃ |
||||||
|
Medium Compatible |
Compatible with SUS304 Stainless Steel and ceramic |
||||||
|
Electronic Wire |
2 Wires |
3 Wires |
|||||
|
Output |
4~20mA |
0~5V |
0-10V |
0.5~4.5 V
radiometric |
|||
|
Power Supply |
10~30 V DC |
8~30 V DC |
15~30VDC |
5 V DC±5% |
|||
|
Short circuit protected |
Yes |
Yes |
Yes |
Yes |
|||
|
Over-voltage protection |
32 V DC |
32V DC |
32 V DC |
7V DC |
|||
|
Insulate resistance |
>100M Ω @100V |
||||||
|
Thermal effect on span |
+/- 0.03%/℃ |
||||||
|
Thermal effect on zero |
+/- 0.03%/℃ |
||||||
|
Electronic connection |
Packard 3 Pin Connector IP65; Packard 3 Pin Connector with cable length by customized.
|
||||||
|
Pressure connect port |
1/8’’NPT male, 1/4’’NPT male/Female, 7/16’’-20 UNF male/Female (by Customized)
|
||||||
|
EMC Standard |
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
||||||
|
IP rating |
IP65 |
||||||
|
Response time |
≤20ms |
||||||
|
Certificate |
CE Certificate |
||||||
|
Weight |
Net weight is about 0.10KG, Full Packing weight is about 0.2KG (Including 2 meters cable) |
||||||
Order information
Pressure range : 0-30 bar , Output : 4-20mA , Power supply : 12~36VDC,
Process connection : 1/4"NPT male ,Electronic Connector : Hirchaman connector .
