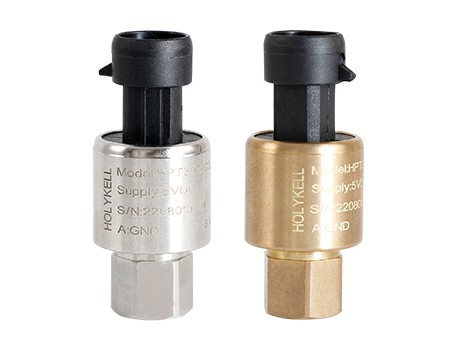

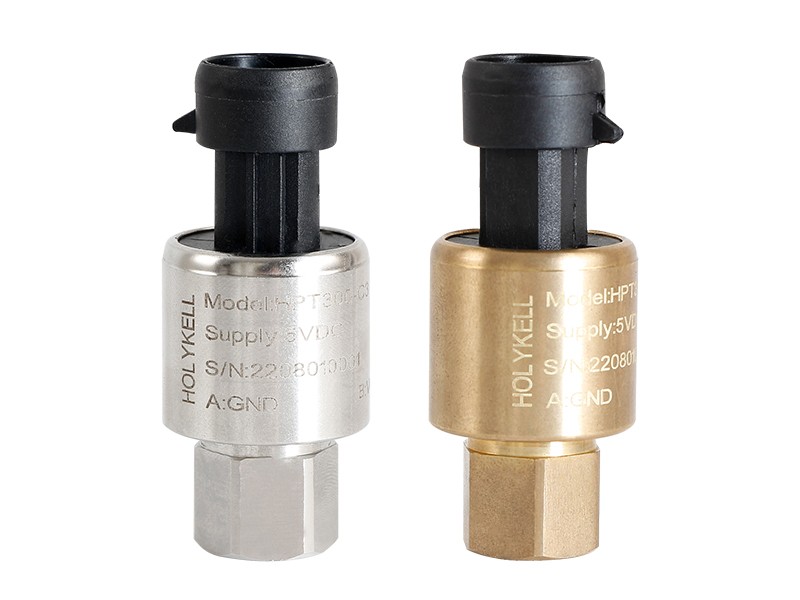

HPT300-C3 HAVC Pressure Sensor

HAVC pressure sensor with integrated German imported Flush Ceramic sensors, it is with economic price and ideal low temp performance for use in refrigeration, air-conditioning and HVAC systems.

Application :

● HAVC System

● Compressor oil pressure monitoring

● Condenser fan control

● Compressor staging and unloading

● Electronic expansion valve control

● Remote systems diagnostics and trending

Advantages
01Running reliable and longlasting in harsh condition
02Without maintenance, even in the most humid environments
03Energy-saving and environmental protection
04High accuracy up to 0.25%F.S
05316L diaphragm, make it suitable for immersion for a long time in most industrial liquids
Resources

Holykell-Measuring Instrument

Technical Data

Parameter

HPT300-C3



Pressure Range

Gauge /Negative/Absolute pressure optional

Overload

150% F.S.



Burst Pressure

200% F.S.



Accuracy

≤ ±0.5%F.S (Typical)   ≤ ±0.25%F.S (By Customized)







Total Error Band

0...50 °C max. ≤±1.0%FS; -20...80 °C max. ≤±2.0 %FS

Stability

0.2%F.S±0.05%/Year

Working Temp

-35℃~125℃

Storage Temp

-40℃~125℃

Temperature Compensation

0℃~50℃

Medium Compatible

Compatible with SUS304 Stainless Steel and ceramic

Electronic Wire

2 Wires

3 Wires

Output

4~20mA

0~5V

0-10V

0.5~4.5 V

radiometric

Power Supply

10~30 V DC

8~30 V DC

15~30VDC

5 V DC±5%

Short circuit protected

Yes

Yes

Yes

Yes

Over-voltage protection

32 V DC

32V DC

32 V DC

7V DC

Insulate resistance

>100M Ω @100V

Thermal effect on span

+/- 0.03%/℃

Thermal effect on zero

+/- 0.03%/℃

Electronic connection

Packard 3 Pin Connector IP65;   Packard 3 Pin Connector with cable length by customized.

Pressure connect port

1/8’’NPT male, 1/4’’NPT male/Female,   7/16’’-20 UNF male/Female (by Customized)

EMC Standard

EN 61326-1:2013; EN 61326-2-3:2013    EN 61000-6-2:2005; EN61000-6-4:2007+A1

IP rating

IP65

Response time

≤20ms

Certificate

CE Certificate

Weight

Net weight is about 0.10KG, Full Packing weight is about 0.2KG (Including 2 meters cable)

Order information

Pressure range : 0-30 bar , Output : 4-20mA , Power supply : 12~36VDC ,

Process connection : 1/4"NPT male ,Electronic Connector : Parkard 3pin .
