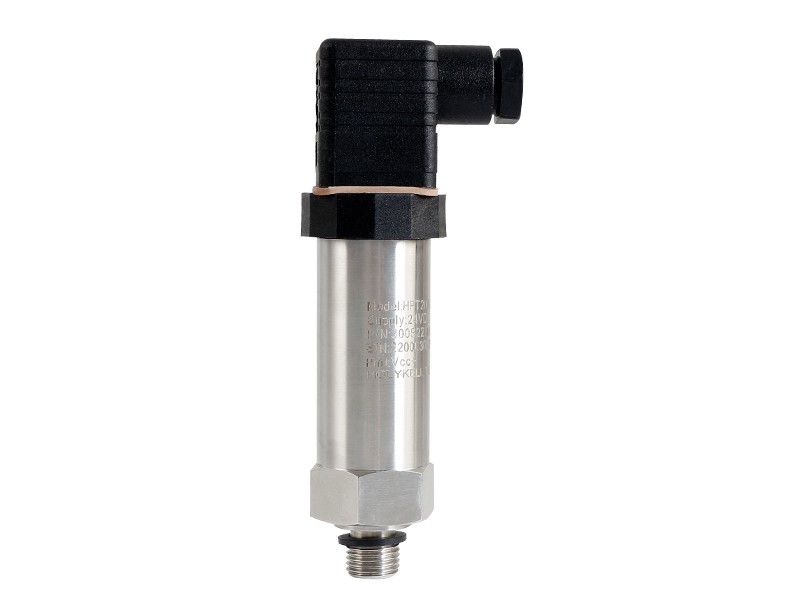

HPT200 Universal Industrial Pressure Sensor
Industrial pressure sensor use high quality Measuring range imported U.S.A piezoresistive pressure sensor, Complete with a fully welded316 stainless steel housing, high shock and vibration and EMI/RFI protection. The Hirschmann, directly cable and M12*4PIN interface with SDI and I2C output.
Application :
● Hydraulic pneumatic equipment
● Gauge, Absolute, Negative, Sealing Pressure Measurement
● Hydro-power
● Intelligent building
● Production control
● Petrochemical
● Pressure measuring instruments
Advantages
01Fully Welded Stainless Steel Housing
02Non-linearity up to 0.125 % of span
03High Shock and Vibration
04Full sealed high stability impact design
05Customized outputs, electrical connections and pressure ports
Resources
Technical Data
|
Parameter |
HPT200-H/EX/C8/C5/G |
|
Pressure Range |
Gauge /Absolute / Sealed gauge / Negative pressure optional. |
|
Safe Overload |
200% F.S. |
|
Burst Pressure |
500% F.S. |
|
Accuracy: |
≤ ±0.5%F.S ≤ ±0.25%F.S ≤ ±0.1%F.S (by customize)
|
|
(Linearity Hysteresis |
Including non-lin., rep. and hys. |
|
Repeatability) |
Optional |
|
Total Error Band |
0...50 °C max. ≤±0.75%FS; -10...60 °C max. ≤±1.0 %FS |
|
Long Stability |
0.1%F.S/Year |
|
Working Temp |
-40℃~85℃/150℃ optional |
|
Storage Temp |
-40℃~105℃ |
|
Medium Compatible |
Compatible with 316L |
|
Electronic Wire |
2 Wires 3 Wires 4 Wires |
|
Output |
4~20mA or 4-20mA+HART 1~5V
|
|
Power Supply |
7~30V/12~30Vdc 12~30Vdc 8~30V/15~30Vdc 7~30Vdc, 12~30Vdc |
|
Load Resistance |
Current type: (U-10)/0.02 (Ω); Voltage type: ＞100K Ω |
|
Insulate resistance |
>100M Ω @100V dc |
|
Zero Temp. Drift |
0.02%FS/℃（≤100kPa）, 0.01%FS/℃（>100kPa） |
|
Body materials |
316L stainless steel |
|
Material of diaphragm |
316L Stainless steel |
|
Filling oil |
Silicon oil (Typical); Fluorocarbon oil (Oxygen Services, by customized) |
|
Electronic connection |
-DIN43650 Hirschman Connector, 4-poles and IP65.
-Plug: (4-poles) Type IP67;
-Directly Outlet Cable Type IP67
-Special proof by customize. |
|
Limiting Frequency |
1 kHz |
|
Mechanical vibration |
±20g |
|
Pressure connect port |
G1/4’’male, G1/2’’male, 1/8’’NPT male, 1/4’‘NPT male,
1/2’‘NPT male and female optional. (by customized) |
|
Explore Proof Grade |
As drawing table listed |
|
Water Proof |
IP65(HPT200-H,HPT200-C5); IP67 (HPT200-C8) |
|
Response time |
≤10ms |
|
Endurance |
>100 million cycles, 0…100 %FS at 25℃ |
|
Options |
Temperature Range by customized, Maximal range: -40…+100 °C
Oil Filling Fluorocarbon oil (O2-compatible), olive-oil, lowest temperature oil (-55 °C) Pressure Connection, Electrical Connection Others on request.
withstand Xylene medium pressure and level application (customized) |
Order information
Pressure range : 0-50 bar , Output : 4-20mA , Power supply : 12~36VDC ,
Process connection : 1/4"NPT male ,Electronic Connector : Hirchaman connector .
