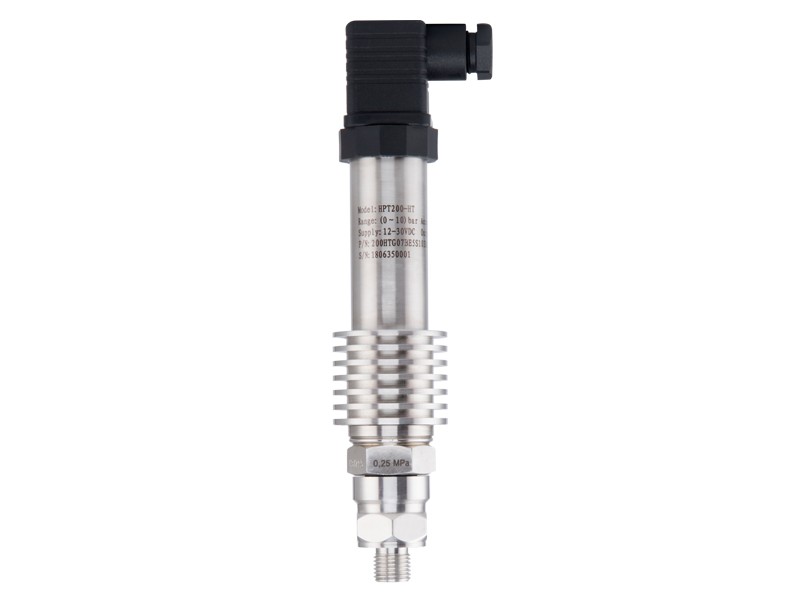

HPT200-HT Pressure Sensor for High Temperature
High temperature pressure sensor HPT200-HT uses high quality diffused silicon pressure sensor or sapphire pressure sensor, designed for extreme conditions, the media temperature up to 200°C. With a wide temperature range and precise pressure measurements, it ensures reliability and safety in demanding industrial applications.
Application :
● Biotechnology
● Food Industries
● Medical,Pharmaceutical
● Steam
● Oil & Gas
● Boiler industry
Advantages
01With Sapphire pressure sensors for max 200℃
022 times range standard overload
034 times range burst pressure
04Fully Welded Stainless Steel Housing
05Surge (lightning) protection
Resources
Technical Data
|
Pressure range |
-1 to 0..0 to 0.1…0 to 2000bar |
|
Output |
4~20mA,0~5V,1~5V,0.5~4.5V,0-10V |
|
Power supply |
12-30Vdc,8-30Vdc,5Vdc,13-30Vdc |
|
Accuracy |
0.5%F.S |
|
Pressure port |
G1/4’’male, 1/4’‘NPT male, G1/2’’... optional |
|
Electronic Port |
DIN Hirschmann or direct cable IP67 |
|
Medium temp. |
-10℃~125℃; -10℃~150℃; -10℃~200℃; -10℃~250℃; -10℃~300℃ optional. -60℃~200℃ by customized. |
|
Temp Compensation |
0~80°C |
|
Zero Temp Drift |
0.5%FS/°C(≤100kPa), 0.3%FS/°C(>100kPa) |
|
Overload |
200%F.S |
|
Burst Overload |
400%F.S |
|
Cooling device |
with cooling device |
|
Certificate |
CE,RoHS |
