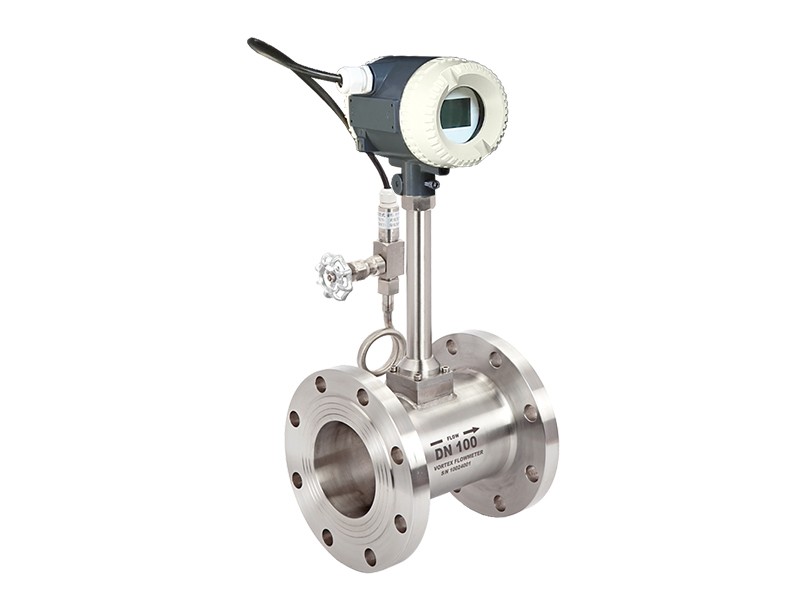

HGVF Vortex Flow Meter

Vortex flow meter is a volume flow meter that measures the volume flow of gas, steam or liquid and the volume flow or mass flow of the standard condition based on the Karman vortex principle. It is mainly used for flow measurement of industrial pipeline medium fluid, such as gas, liquid, steam and other medium.

Application :

●Industrial production process control

●Energy metering

●Water project

●Environmental protection project

●Pipeline transportation

Advantages
01The structure is simple and firm, with no moving parts, high reliability, and very reliable long-term operation.
02The output is a pulse signal proportional to the flow rate, with no zero drift and high accuracy.
03The detection sensor does not directly contact the measured medium, with stable performance and long life.
04The measurement range is wide, and the range ratio can reach 1:10.
Resources

Technical Data

Pipe Size

DN 15 mm ~200 mm

Flow range

0~±32m/s

Medium temperature

-20°C~+120°C

Flow output signal

4~20mA 750Ω load

Connection Way

Screw ,Flange, Clamp sanitary, Plug in type

Supply voltage

12V±10%, current:≤10mA
