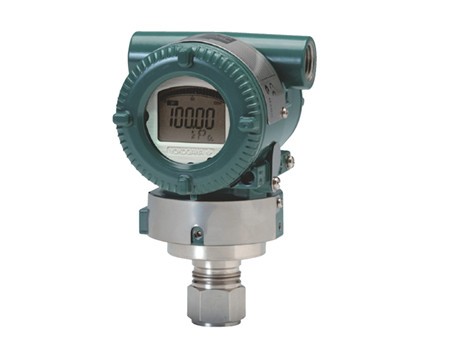

HK71 In-Line Capacitance Pressure Transmitter
HK71 In-Line Capacitance Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.
Application :
● Hazardous area
● Absolute and gauge pressure in gases, steams
● Level,volume or mass measurements in liquids
● Aerospace
● Automotive
● Medical equipment
● HVAC
Advantages
01Measures Gauge/absolute pressure up to 10000 psi (689,47 bar)
02High accuracy, better reliability and intrinsically safety
03Supports HART, FF, Profibus PA, Profibus DP protocol
04Accuracy: ±0.075% (20°C, range rate10:1)
05Easy installations without need for heat tracing and insulation
Resources
Technical Data
|
Pressure range |
0- 5Kpa....100Mpa |
|
Output |
4~20mA,Hart Protocol |
|
Display |
LCD |
|
Power supply |
12VDC~36VDC |
|
Pressure port |
M20*1.5 |
|
Accuracy |
0.075 %F.S |
|
Working temperature |
-30°C~+400°C |
|
Certificate |
CE,ExiaII CT6 Ga ,ATEX,RoHS |
