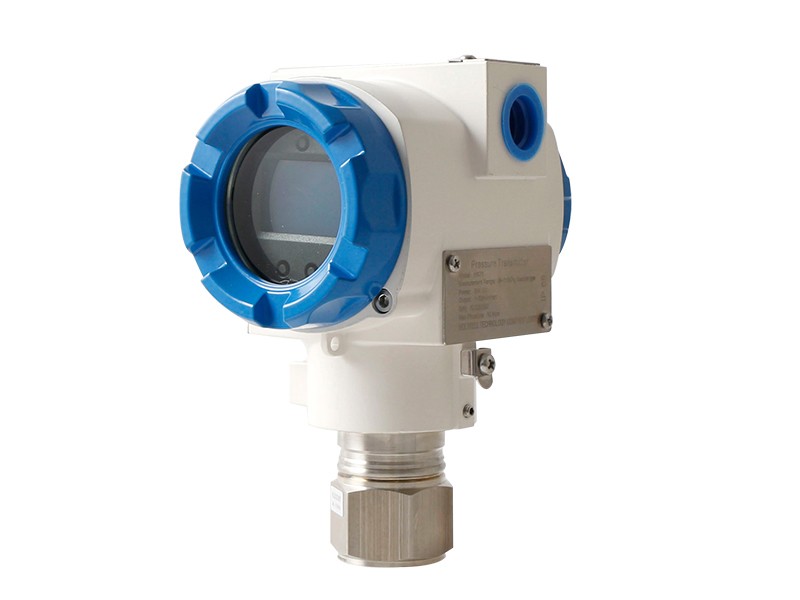

HK51 Smart Mono crystalline Silicon Pressure Transmitter
Monocrystalline Silicon Pressure Transmitter with its 4 ... 20 mA, 4 ... 20 mA HART, PROFIBUS PA or FOUNDATION Fieldbus output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX).
Application :
● Hazardous area
● Absolute and gauge pressure in gases, steams
● Level, volume or mass measurements in liquids
● Aerospace
● Automotive
● Medical equipment
● HVAC
Advantages
01High accuracy
The differential pressure (flow) transmitter can measure high accuracy within the measurement range of 0.1~40000kPa. Migration of positive and negative zero point is not necessary for linearity adjustment.
02Excellent environmental adaptability
Smart static pressure compensation and temperature compensation protect the transmitter from effects of temperature, static pressure and overpressure, and minimize on-site comprehensive measurement error.
Resources
Technical Data
|
Pressure range |
0- 5Kpa...100Mpa |
|
Output |
4~20mA,Hart Protocol |
|
Display |
LCD |
|
Power supply |
12VDC~36VDC |
|
Pressure port |
M20*1.5 |
|
Accuracy |
0.075 %F.S |
|
Working temperature |
-40°C~+125°C |
|
Certificate |
CE,ExiaII CT6 Ga ,ATEX,RoHS |
