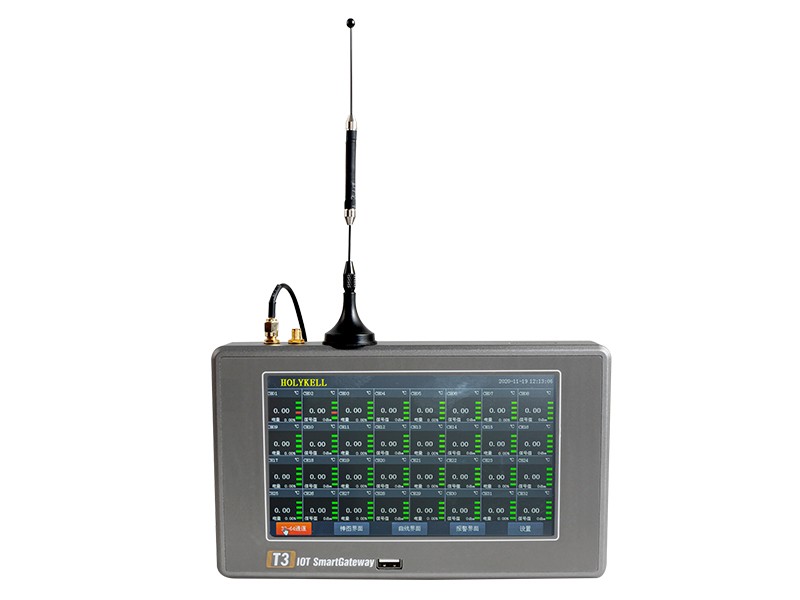

H3 Intelligent Wireless Data Acquisition Recorder
This digital recordercan receive signals of current, voltage and resistances, and realize display, recording, over-limit monitoring, report generation, data communication, signal transmission and flow accumulation of temperature, humidity, pressure, liquid level, flow and others. And it can also provide data communication with a PLC.
Application:
●Agriculture
●Environmental monitoring systems
●Transportation
●Electrical power transmission networks
●Meteorology equipment
●Process control system
Advantages
01HD big color touch screen with fast response
02Different intelligent data acquisition control boards optional
03Multiple interfaces provided and custom service available
04Complete functions equipped
Resources
Technical Data
|
Display |
7 ”color TFT touch LCD |
|
Input |
DC: (4~20) mA, (0~10) mA, (0~20) mA; DC voltage: (0~5)V, (0~10)V, (-20~+20)mV; Thermal resistance: Pt100, Cu50, Pt1000; Thermocouple:K,S,R,B,N,E,J,T,WRE3/25, WRE5/26 |
|
Power supply |
24Vdc |
|
Communication |
RS485,RS232C,Ethernet,GPRS,LAN |
|
Working environment |
-10℃ ~50℃ |
