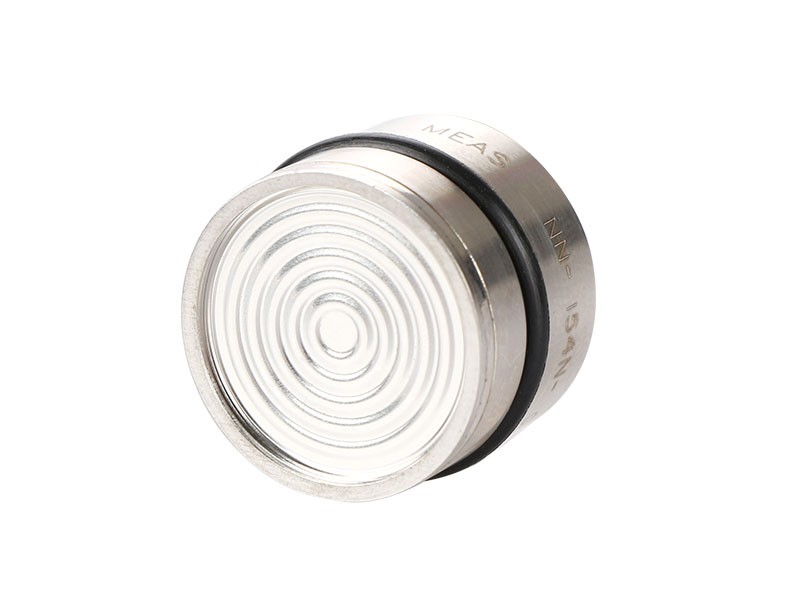

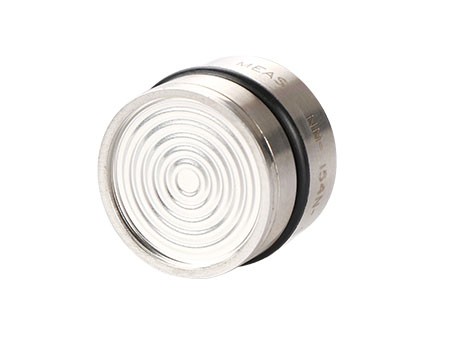

CYX19 Piezoresistive Pressure Sensor With Isolated

CYX19 high stable OEM sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die. Stainless steel 316L housing with diameter Ф19mm.https://www.holykell.com/products/CYX20_Piezoresistive_Differential_Pressure_Sensor.html

Application :

● Industrial process control

● Pressure checking meter

● Pressure calibrator

● Liquid pressure system and switch

● Aviation and navigation inspect

Advantages
01Pressure range ,-100kPa~10kPa~100MPa
02Gauge, absolute, sealed gauge
03Constant current power supply
04Isolated construction, enable to measure various media
05Full stainless steel 316L
Resources

Technical Data

PARAMETERS

TYP

MAX

UNITS

NOTES

Pressure range

0-3.5



MPa



FS output

100

--

mV



Zero output

±1

±2

mV



Non Linearity

0.2

0.5

%FS



Hysteresis

0.05

0.1

%FS



Repeatability

0.05

0.1

%FS



Zero Temperature drift

±0.4

±1.6

%FS

10kPa @25℃

Zero Temperature drift

±0.15

±0.8

%FS

≥35kPa @25℃

Temperature Error Sensitivity

±0.4

±1.6

%FS

10kPa @25℃

Temperature Error Sensitivity

±0.2

±0.7

%FS

≥35kPa @25℃

Long-term Stability:

±0.10



%FS



Temperature Compensation:

0-50

80

°C

Optional

Working Temp:



125

°C



Storage Temp:



125

°C



Lifetime

1×108



Pressure cycle(FS)

25℃
