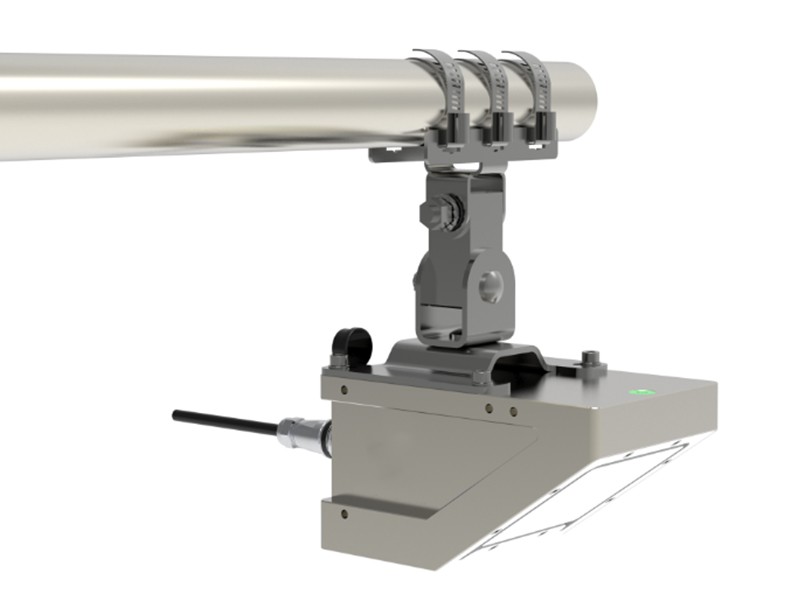

60GHz Radar Flow Meter Of Flow Meter Manufacturer In Model HRF 600S

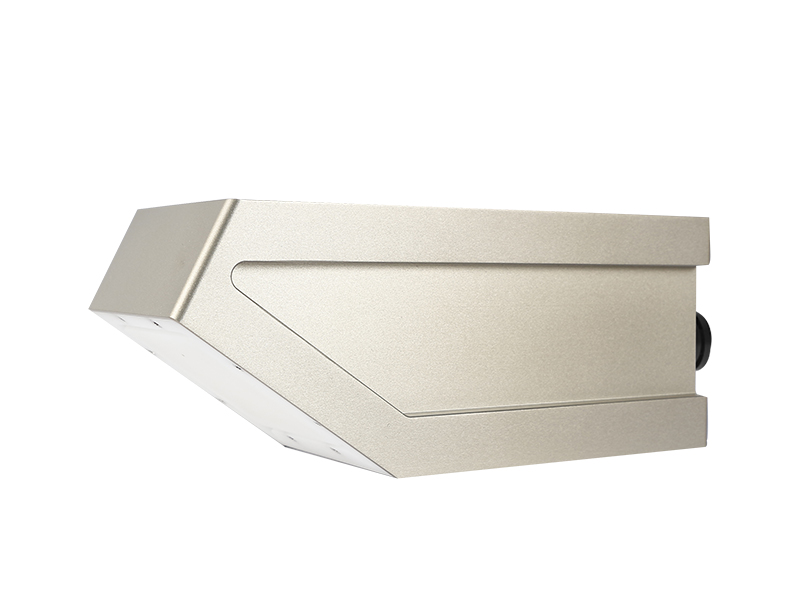

HRF600-S radar flow meter is developed based on PCR radar measurement technology. The flowmeter is made of a water level sensor, a water velocity sensor and supports wireless transmission function. The radar frequency of water level sensor can be 60GHz or 80GHz. It can not only be used in harsh environments such as acid rain, but also supports remote adjustment of equipment parameters and maintenance by mobile phones. It is the best solution for monitoring the flow or velocity of open channels, agricultural irrigation or groundwater.
Application :
● Open channel flow rate or flow monitoring (Parshall trough, etc.)
● Direct drinking water flow monitoring
● Irrigation of agricultural ditches
● Industrial wastewater discharge monitoring
● Domestic sewage discharge control
Advantages
01High frequency radar can provide fast and reliable measurement results within 7 meters.
02Built-in vertical angle correction technology can be used for irregular open channels or ditches (trapezoid, round or U-shaped, etc.).
03Non-contact measurement is not affected by wind, temperature, haze, sediment or floating objects.
04Support mobile phone APP and wireless transmission function, you can easily set parameters and remote control at home.
05Optional solar power supply to avoid replacing lithium batteries.
06Anti-static (15kv),anti-surge (6kv)(lightning protection) and anti-electromagnetic radiation.
Resources
Technical Data
|
Versions |
HRF600s(Stanard version) HRF600s-R(RTU version): Support parameter adjustment by bluetooth; wireless configuration and maintenance by mobile phone; equipment remote upgrade |
|
Velocity Measurement System |
|
|
Measuring Principle |
Planar microstrip array antenna CW+FMCW |
|
Operating Mode |
Automatic, telemetry |
|
Applicable environment |
24-hour, rainy days |
|
Operating temperature |
-35~70℃ |
|
Operating Voltage |
7-32VDC;5.5-32VDC(assorting) |
|
Working current |
12VDC input, working mode: ≤35mA standby mode: ≤1mA |
|
Lightning protection |
6KV |
|
IP Rating |
IP68 |
|
Radar Wave Velocity Meter |
|
|
Radar frequency |
24GHz |
|
Max measuring range |
40m |
|
Velocity range |
0.03~20m/s |
|
Velocity measurement accuracy |
±0.01m/s;±2%F.S |
|
Antenna angle |
12° |
|
Measuring direction |
Automatic recognition of water flow direction, built-in vertical angle correction |
|
Radar Water Level Sensor |
|
|
Radar frequency |
80GHz |
|
Measuring range |
7 meters |
|
Measurement accuracy |
±2mm,±0.05%FS |
|
Antenna angle |
8° |
|
Data transmission system |
|
|
Data transmission |
RS485(acquiesce), RS232(assorting), 4~20mA(assorting), SDI12(assorting), MODBUS(agreement) |
