Ultrasonic Level Sensor for River Water Level Measurement in South America
Project Background
This is a project from our customer in South America. It is located in a beautiful country blessed with abundant sunshine and rich water resources. Numerous rivers, canals, and water channels spread across the region, creating a strong demand for reliable and efficient water level monitoring solutions.
To improve river water level monitoring and remote data collection, the customer carefully evaluated several well-known sensor manufacturers before finally choosing the Holykell UE3006 Ultrasonic Level Sensor from China.
This successful application once again demonstrates the excellent stability and adaptability of the UE3006 in outdoor environmental monitoring projects.
Challenges of River Water Level Monitoring
River and channel monitoring projects in remote outdoor areas often face several challenges:
Lack of stable municipal power supply
Strong sunlight, rain, humidity, and changing weather conditions
Need for long-term stable and maintenance-free operation
Requirement for remote monitoring and real-time data access
Demand for accurate water level data for flow calculation and flood management
The customer needed a compact, reliable, and easy-to-install level sensor capable of operating continuously in harsh outdoor environments while supporting integration with their existing remote telemetry system.
Why Chose Holykell UE3006
The Holykell UE3006 ultrasonic level sensor stood out among multiple competing products thanks to its compact design, stable performance, and flexible signal outputs.
Key Features of UE3006 Ultrasonic Level Sensor
Compact Size with Powerful Performance
The UE3006 features a small housing, diameter 41mm and compact structure, making it highly suitable for limited installation spaces such as monitoring boxes, small channels, and outdoor stations.
High Precision Measurement
Equipped with an imported high-stability sensing core, the sensor provides accurate and reliable water level measurement performance for long-term outdoor applications.
Strong Anti-Interference Capability
The UE3006 adopts advanced ultrasonic signal processing technology with excellent resistance to environmental interference, ensuring stable operation even in complex outdoor conditions.
Multiple Output Signals Available
To meet different integration requirements, the sensor supports multiple signal outputs, including 4–20mA, RS485 Modbus, various voltage outputs, PNP, NPN and relay.
This allows easy connection to PLCs, RTUs, telemetry systems, and cloud monitoring platforms.
Non-Contact Measurement
Ultrasonic technology enables non-contact water level measurement, reducing maintenance requirements and improving long-term reliability.
Solar-Powered Remote Monitoring Solution
Since most monitoring locations are situated in remote outdoor areas where conventional power supply is unavailable, the customer designed a customized solar-powered monitoring box.
A solar panel installed on top of the enclosure provides continuous energy for the monitoring system. The opening underneath the box is specially designed for mounting the UE3006 ultrasonic level sensor toward the river surface.
The system is integrated with the customer’s own remote transmission platform, enabling real-time data upload to the monitoring center. Operators can remotely check water level data anytime through the backend system.
Based on the collected water level information, the customer can also calculate flow rate for river management and hydrological analysis.
Application Advantages
By combining the Holykell UE3006 with a solar-powered telemetry solution, the customer successfully achieved:
Real-time remote water level monitoring
Reduced field maintenance workload
Stable operation in outdoor environments
Low-power unattended monitoring
Flow calculation based on water level data
Improved river management efficiency
Typical Applications of UE3006
The UE3006 ultrasonic level sensor is widely used in:
River water level monitoring
Open channel monitoring
Irrigation systems
Reservoir level monitoring
Urban drainage systems
Flood warning systems
Environmental water monitoring
Smart water management projects

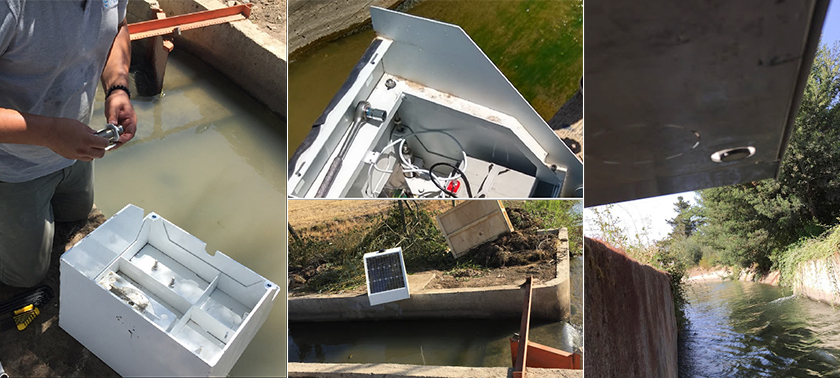

Installation Site
Conclusion
With its compact size, reliable performance, and excellent outdoor adaptability, the Holykell UE3006 Ultrasonic Level Sensor provides an ideal solution for river and open-channel water level monitoring projects.
Holykell continues to provide professional level measurement and remote monitoring solutions for global customers in water conservancy, environmental monitoring, smart cities, and industrial automation applications.
