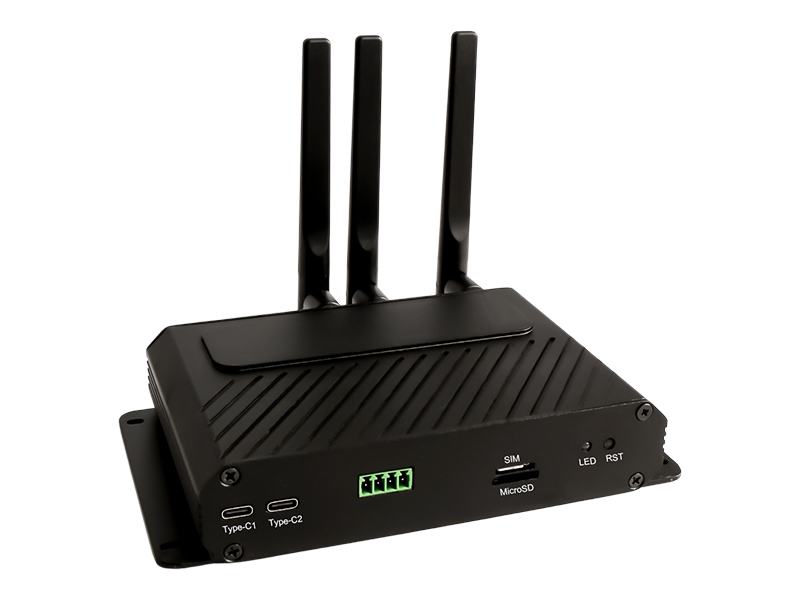

HW500 LoRa Wireless Gateway
The HW500 LoRa gateway is a cutting-edge IoT communication device supporting 3G/4G mobile broadband standards like FDD-LTE, TDD-LTE, and WCDMA. Featuring a high-performance 64-bit RISC-V processor and embedded Linux OS, it ensures secure, high-speed data transmission. Its industrial-grade design includes an aluminum alloy casing, wide power input range, and advanced self-check mechanisms for stability. With support for Ethernet, 4G/WiFi switching, Modbus protocol, and GPS functionality, it’s ideal for various industrial applications.
Application :
●Smart Cities
●Industrial Automation
●Smart Agriculture
●Environmental Monitoring
●Utility Monitoring
Advantages
01Wide network compatibility, including FDD-LTE, TDD-LTE, WCDMA and other 3G/4G mobile broadband network protocols
02Industrial-grade design equipped with a high-performance 64-bit RISC-V processor and industrial-grade wireless module
03Features hardware and software watchdogs, multi-level link detection, and self-check mechanisms for automatic fault recovery and continuous, secure operation
04Versatile connectivity, wired/4G/WIFI network switching, IEEE802.11b/g/n WiFi support, and an Ethernet RJ45 interface for flexible integration with industrial systems

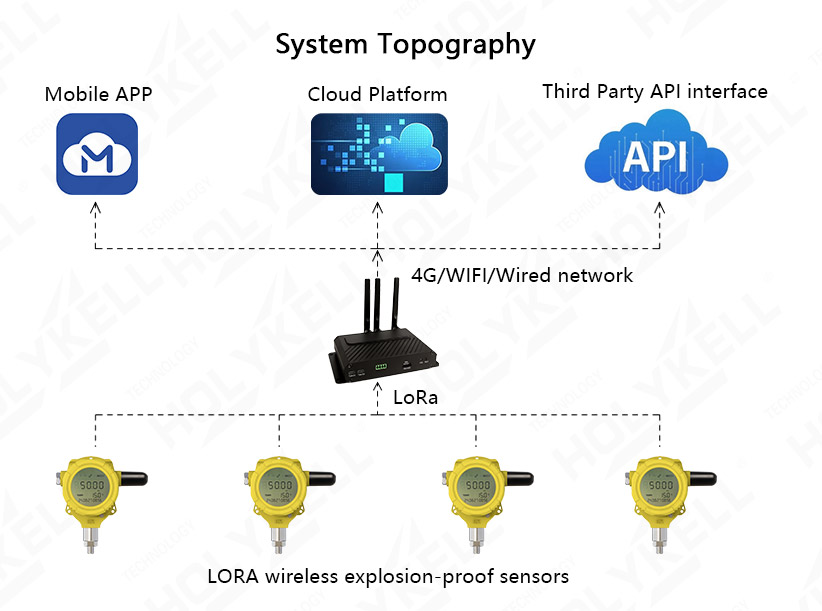

05Supports remote networking for point-to-point and point-to-multipoint communication, with compatibility for wireless transparent transmission and Modbus protocol
06High-precision independent GPS positioning for advanced location-based applications
Resources
Technical Data
|
Built-in 4G Module Wireless Parameters |
|
|
Standards and Frequency Bands |
LTE-TDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/ B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
|
Receiving Sensitivity |
-99 ~ -108dBm |
|
Transmit Power |
+23 ~ +33dBm |
|
Built-in WiFi Module Wireless Parameters |
|
|
Standards & Frequency Bandwidth |
Supports IEEE802.11b/g/n standard, max data rate 150Mbps |
|
Receiving Sensitivity |
< -72dBm@54Mpbs |
|
Transmit Power |
+16 ~ +23dBm(11g/b/n) |
|
Built-in LoRa Module Wireless Parameters Wireless RF |
|
|
Modulation |
LoRa |
|
Frequency Range |
433MHz ~923MHz (optional) |
|
Transmission Rate |
Spreading factor and bandwidth settings |
|
Receiving Sensitivity |
-137 ~ -148dBm |
|
Transmit Power |
+22dBm |
|
Power Consumption |
|
|
Maximum Transmit Current |
≤ 110mA (22 dBm) |
|
Maximum Receive Current |
< 6mA |
|
Interface Types |
|
|
One LAN Ethernet Interface(RJ45 socket). Adaptive MDUMDIX built-in electromagnetic isolation protection |
|
|
Antenna Interface |
1 standard SMA antenna interface (for 3G/4G); 3 standard SMA reserved antenna interfaces(for WiFi, GPS, and LoRa) |
|
Power Interface |
10~30V (standard DC12V 2A), with built-in power surge protection |
