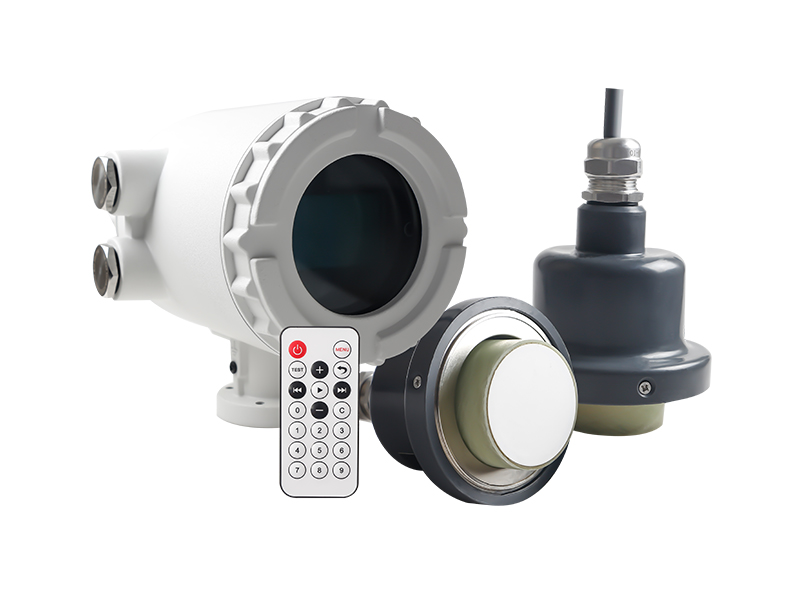

HU-TM Non-intrusive Ultrasonic Fuel Tank Level Sensor
HU-TM is a non-contact fuel level sensor for sealed containers. It is installed externally on the container's outer wall, eliminating the need for intrusive installations. It's designed for precise level detection of toxic substances, strong acids, alkalis, and pure liquids, even under high temperature and pressure conditions. With no special requirements for the liquid or container material, and featuring explosion-proof design, it's versatile and safe for a wide range of applications.
Application:
●Chemical storage monitoring
●Waste water treatment facilities
●Oil and gas tanks
●Environmental water level surveillance
●Industrial process control systems
Advantages
01Non-Contact safety measurement without contacting the medium, eliminating the risk of contamination or damage to the sensor
02High accuracy up to ±1‰FS with small blind area 3cm, allowing for precise readings even at low liquid level
03Intelligent power control by automatic adjustment of its transmission strength based on working conditions
04Automatic waveform tuning and problem diagnostics
05Infrared remote control calibration, reducing the setup complexity and time
Resources
Technical Data
|
Range |
5m, 10m, 20m, 30m, 40m, 50m |
|
|
Short -term repeatability |
1mm |
|
|
Measurement error |
±1‰FS, ±2‰FS, ±5‰FS |
|
|
Temperature measurement range |
-45℃ ~ +100℃ |
|
|
Temperature measurement accuracy |
1℃ |
|
|
Signal output |
4 ~ 20mA (Max load 500Ω), HART, Modbus |
|
|
Power supply |
DC24V( 22V~36V ) |
DC 24V(18V~30V ) |
|
Power |
1W |
10W |
|
Communication |
RS-485, Infrared, HART, Modbus |
|
|
Relay alarm output |
DC 30V 5A |
|
|
Explosion-proof |
Ex dbⅡC T6 Gb |
|
|
Enclosure Protection |
IP67 |
|
|
Blind area |
For ideal working condition, the blind area is 3cm, the specific value is determined by the complexity of the working condition |
|
|
Electrical interface |
M20×1.5 (F), 1/2 NPT (F) |
|
